hydraulic swing type foot pedal shearing machine

FOB Reference Price:Get Latest Price
US $5,000-15,500 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Quick Details
Place of Origin:
Anhui, China (Mainland)
Brand Name:
Model Number:
Rated Power:
One Year
After-sales Service Provided:
Engineers available to service machinery overseas
Product name:
hydraulic swing type foot pedal shearing machine
as customers' option
Cutting material:
Metal Stainless Steel Carbon Steel Aluminum
Max. feeding distance:
Feeding fixed position accuracy:
about 0.15
Max. plate size:
Min. plate size:
Cutting mode:
hydraulic shearing
machine type:
swing type metal shearer
Supply Ability
Supply Ability:
30 Set/Sets per Month
Packaging & Delivery
Packaging Details
plastic film or wooden box
hydraulic swing type foot pedal shearing machine
Shanghai Port
Lead Time :
30 days after receive the payment
Product Description

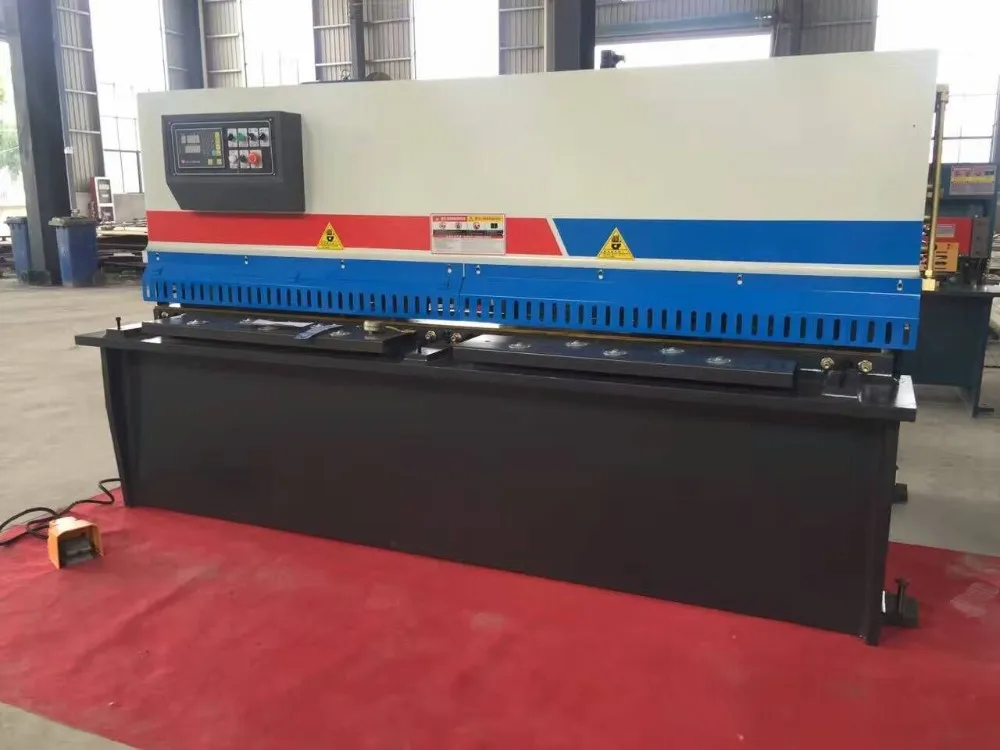

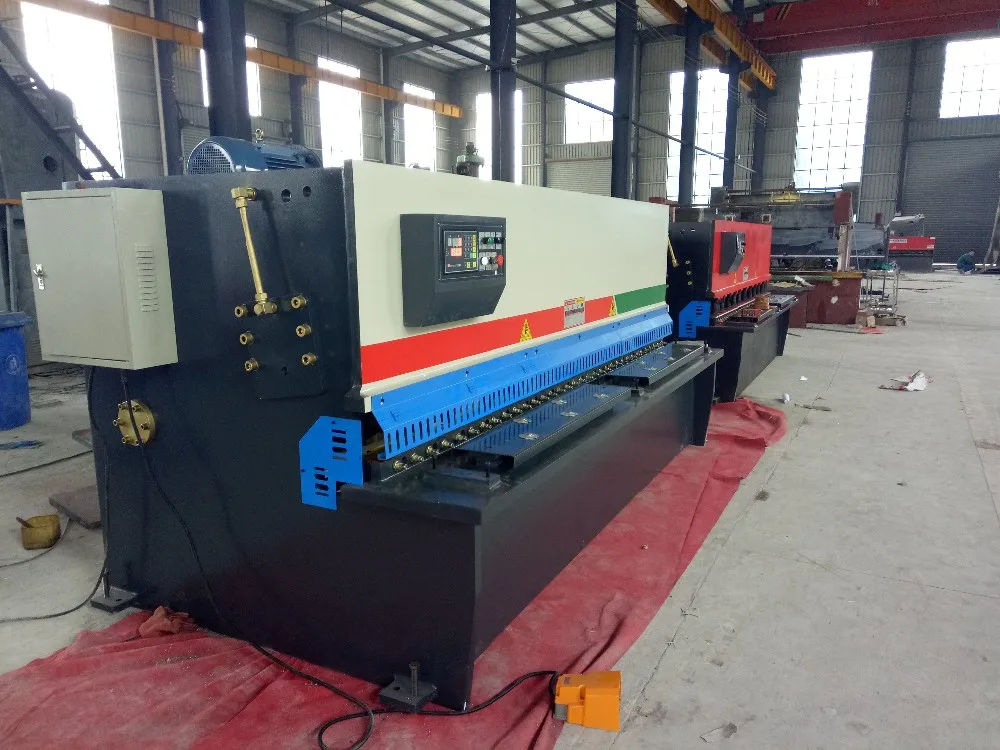

hydraulic swing type foot pedal shearing machine

General Instruction
Hydraulic shearing machine is used to cut different metal materials, such as iron, mild steel, stainless steel, aluminum alley, galvanized plate...... Different material with different tensile strength and should choose different kinds of capacity and model machine.
It is very widely used in aviation, light industry, metallurgy, chemical engineering, construction trades, ships, auto, electric power and engineering, decoration, doors & windows making and so on.
Depends on different material, thickness and length, the shearing machine can be made to different size, capacity and design.

Hydraulic shearing machine can generally be divided into five categories
1. QC12Y Series Hydraulic NC Swing Shearing Machine
2. QC12K Series Hydraulic CNC Swing Shearing Machine
3. QC11Y Series Hydraulic NC Guillotine Shearing Machine
4. QC11K Series Hydraulic CNC Guillotine Shearing Machine
5. Special Industry and Required Shear

This series shearing machine is the upgrades of QC12Y series.It will come with Computer Numerical Control(CNC) operation system and ball screw,linear guide and servo motor driven back gauge to ensure the position accuracy.

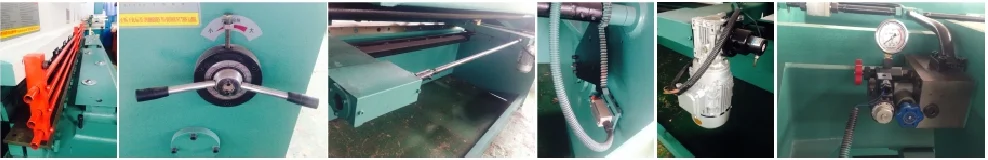

Performance characteristics

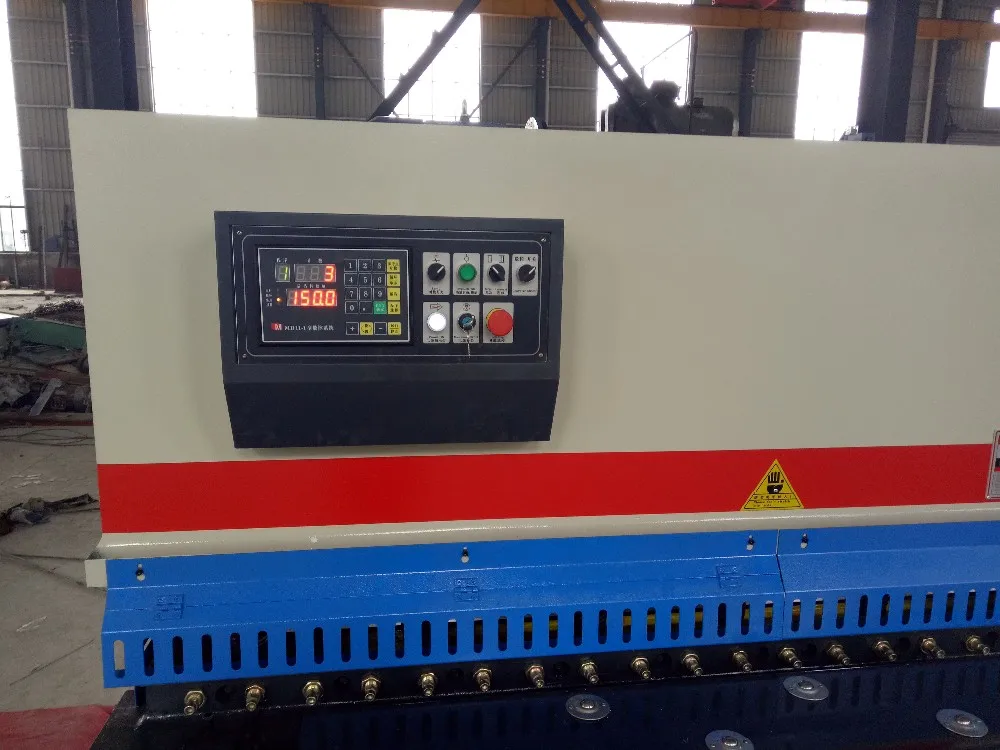

1. With optional programmed controller system Chinese famous ESTUN E200PS or Netherlands DELEM DAC310

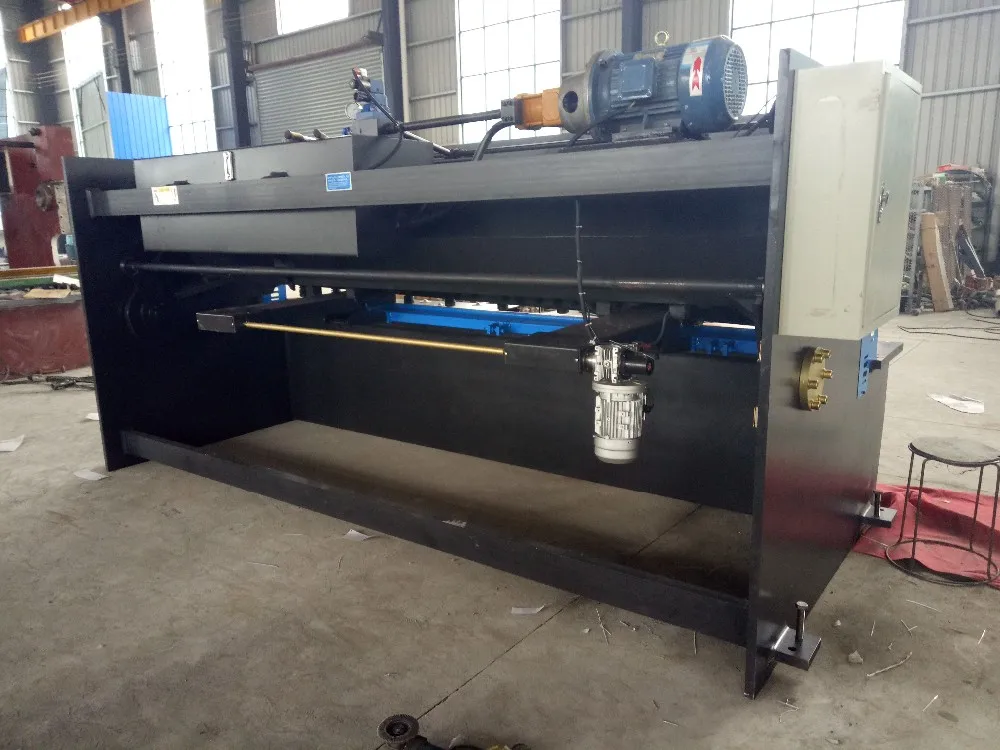

2. Adopt linear guide,ball screw and servo motor driven back gauge to ensure the accuracy
3. All main parts of this machine such as worktable, wallboard,top blade rest, etc. are adopting steel plate welded structure
4. Hydraulic transmission cutting
5. Nitrogen cylinder driven returning stroke with stable operation, low noise, and well rigidity
6. With electric driven back stop structure and mechanical worm wheel-worm transmission control with low noise and high precision
7. Adjustment blade gap board to adapt different thickness plates
8. Safety protection fence and warning tape

Our machine advantages
1. Straightness:Within 3 meter error within 0.10mm
In the same industry product error 0.5-1mm
2. Cutting times 50% faster than the same industry.
For example:4*2500 shearing machine,our company product 30 times/min,in the same industry product only 12 times/min.
3. Machine body intensity,high precision processing equipment,holistic processing,the machine body will not be deformation in 10 years.
4. Blade material:6CrW2Si
Heat treatment: 55°-60°HB
5. Low noise,gear pump drive by hydraulic,70bd.
6. Emergency stop foot pedal increase the security protection,explosion -proof power supply switch cord.

How to choose the machine model?
The main required information is the material,cutting thickness and cutting length.
This series shear is mainly used to cut metal plates with the thickness of 0.2-30mm and different shearing length.The maximum cutting thickness is only applicable to carbon structural steel plates with the tensile strength of 450 MPa; if it is used to cut metal plates with relatively high tensile strength such as manganese steel, stainless steel, etc., the maximum shearing thickness shall be less. Thus, when using the shear, the thickness of plates shall be strictly controlled by the operators themselves in accordance with the value of tensile strength of plates.As the cutting angle of this series is fixed,it can not be adjusted according to big thickness difference,usually it is widely used with the thickness of 0.2-16mm.Above 16mm thickness you can choose QC11Y series.

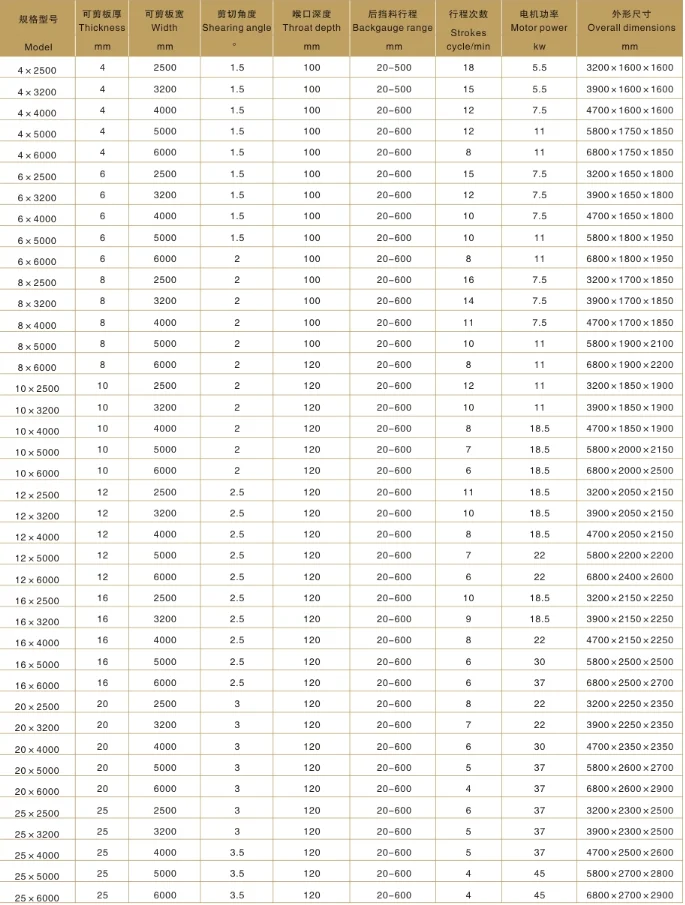

Then,according to the thickness of different material,you can choose the suitable length for yourself.With all of these you can go to the technical parameters table to find the right model and details.
If you need further help from us,please contact us through our contact information.

Packing and Delivery
Plastic film Wrapping, or by customers special requests
Payment Terms
30% T/T in advance, paid the balance before shipment
Trade Insurance
L/C at sight or L/C 30 days is also accepted
D/P is available for long-term cooperated customer
Company Intro

Maanshan Mao Feng Heavy Machinery Co.,Ltd

Was established in 2006 with a registered capital of 15 million yuan. It is Located in Maanshan Bowang Industrial Zone in Anhui province of China (Mainland) near the Nanjing Lukou airport. At present, the company covers an area of 30,000 square meters and has building area up to 18,000 square meters. MF passed the ISO 9001:2008 quality management system standard in 2008, and obtained CE certificate in 2011.

Technician Team Photo

MF's team has more than 150 staffs in which 16 people are senior engineers and technicians  . Our team of Service technicians are trained specialists available to answer your call, and to provide machinery installation, repairs, upgrades, maintenance and more. We are dedicated to create greater value for global customers to enhance the international competitiveness of China metal fabrication machine industry.

Workshop Photo

We are standing by to help you get more out of your metal. Give MF the opportunity to show what our quality tools & services can do for you and your businesses success today and beyond
