hydraulic punching and shearing ironworker machine

FOB Reference Price:Get Latest Price
US $11,865-13,670 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
CNC or Not:
CNC
Power Source:
Hydraulic
Place of Origin:
Anhui, China (Mainland)
Brand Name:
Maofeng
Model Number:
Q35Y-30
Voltage:
380V/220V Optional
Power(W):
11KW
Weight:
6800kg
Dimension(L*W*H):
2680*1100*2300mm
Certification:
CE ISO
Warranty:
3 Years
After-sales Service Provided:
Engineers available to service machinery overseas
Punching pressure:
160ton
Max cutting thickness:
30mm
Plate strength:
≤450N/MM
Angle of shear:
A trip size:
335ton*30mm; 600ton*20mm
Slider trip:
80mm
Trips frequency:
7-16 times/min
Throat depth:
600mm
Punch depth:
26mm
Max punching diameter:
38mm
SupplyAbility
SupplyAbility:
150 Set/Sets per Month
Packaging & Delivery
Packaging Details
Inside Packing: with three layers waterproof plastic film
Outside Packing: standard export woodencase
hydraulic punching and shearing ironworker machine
Port
Shanghai port
Lead Time :
15workdays
Product Description

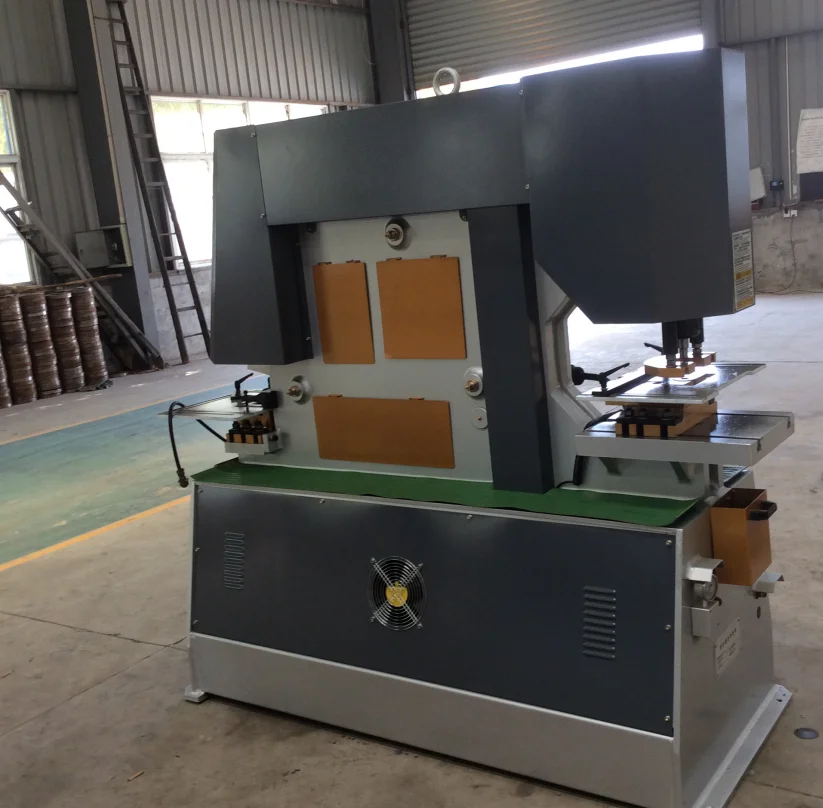

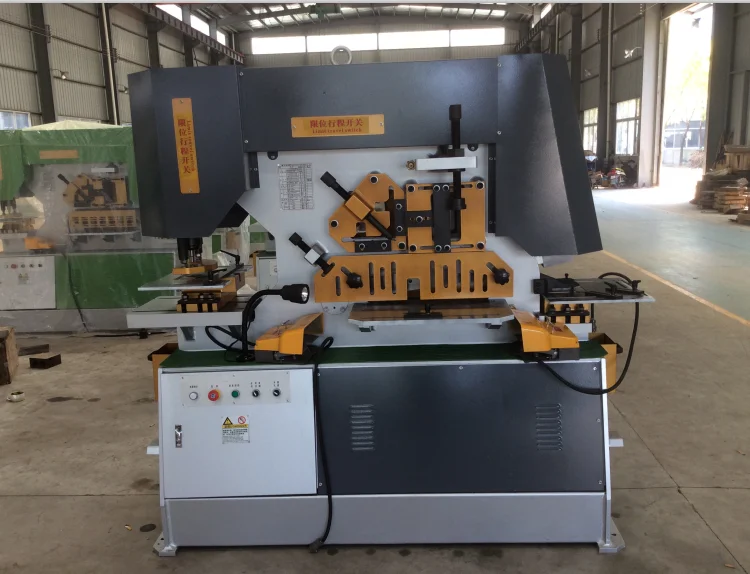

hydraulic punching and shearing ironworker machine

1. Cutting position of angle steel can be 45 degree cutting both from top and bottom
2. The diamond blades ensure high quality cutting, that is minimum variant and loss of cutting material. It can be 45 degree cutting both from top and bottom
3. Cutting position of round steel and square steel has several different size hole, adjustable fixing device is convenient for cutting different sizes steel
4. Optional blades
5. Adopt large nut and square stop plate to ensure precision
6. Adopt potection guarding to guarantee operation safety

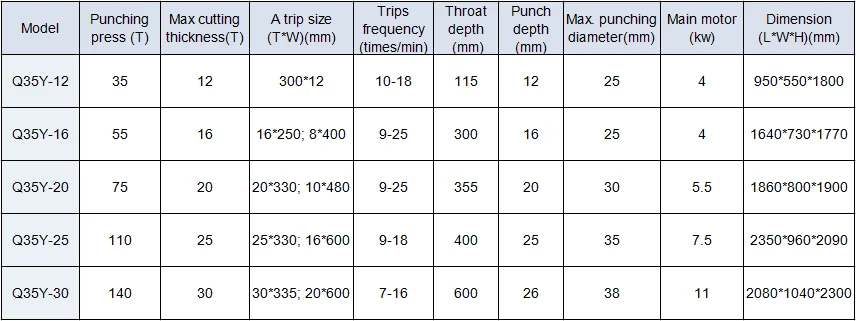

Parameters



Advantage of the machine
1.Q35YL Series Hydraulic Iron worker,Totally European design,the machine are strong and easy to use machines which are able to can cut and punch all kinds of materials such as plate,square bar,round bar,channel and so on.
2.ADH industrial hydraulic iron workers have been designed and built to the highest quality standards in the industry.This profitable machine will serve any grueling fabrication shop for decades to come.
3.The machine by the European union CE certification and ISO quality system certification.
4.Adopt hydraulic drive,this series machine is suitable for the plastic material of blanking,drawing and pressing process.Such as sheet metal blanking, stretching, fine blanking,the cold extrusion of metal parts
5.Hydraulic transmission is the latest product of the multi-function joint punching and shearing machine,shearing punching,die cut flat steel,square steel,round steel,angle steel,channel steel,I-beam carried,and equipped with shear blOck feeding devices.

Attention
1.Punching and notching work should not be performed at the same time.
2.Keep all edges of blades sharp.
3.To ensure safe punching and cutting work the hold-down unit should be adjusted according to any thickness of material within the cutting capacity of the machine.

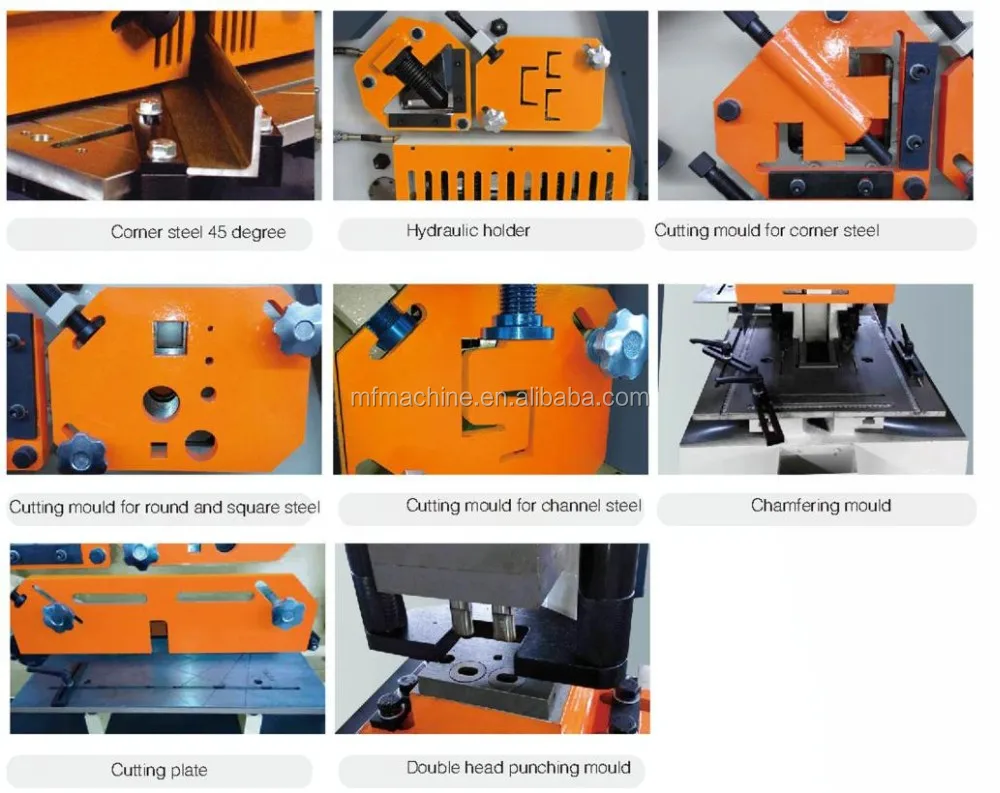

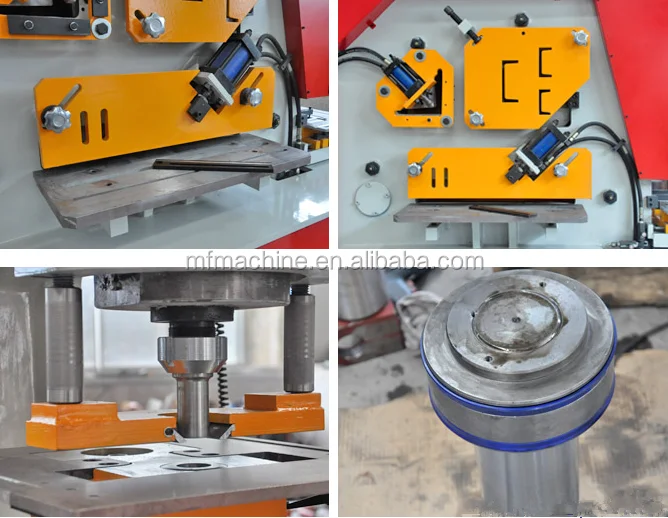

Details

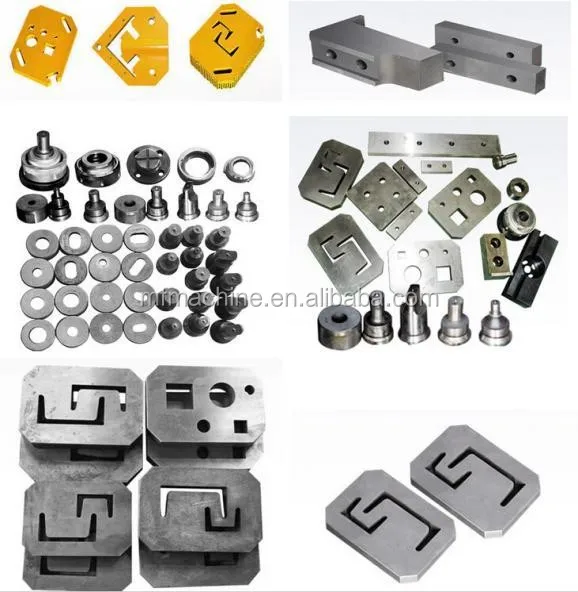

Optional moulds

Packaging & Shipping

Optional Packing

Inside Packing: with three layers waterproof plastic film
Outside Packing: standard export wooden case

100% Satisfaction Guarantee.

1. 24 hours online service;
2. Three years warranty, repair and service for the whole life.
3. Question report will be replied in 48 hours.
4. Quality guaranteed.



Our Services

After-sales service

1. A user guide is included to assist with the machine installation and adjustment and help solve problems which may happen occasionally.

2. The machine will be adjusted one week prior to delivery to make sure it is in perfect condition

3. Technicians are available to guide the installation and adjustment on site. This service would be at buyer's expense, which includes the technician's salary, travelling expense, accommodation, consulting fee etc.

4. All parts are customizable,



Warranty

1. We offer 24-month warranty for the Machine from the shipment date.

2. The warranty does not cover normally worn components

3. We will not be responsible for any damage caused by misuse, improper handling, negligent maintenance, intentional injury or other damages.

FAQ

1.Are you factory or trading company?
We are factory but also do trading.

2.What shall we do if don't know how to operate your machine after bought from you?
We have detailed installation and operation manual. Telephone and online support available 24 hours a day.

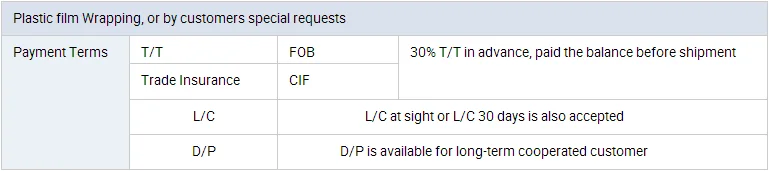

3.What are your payment terms?
We support T/T, L/C, Western Union and so on.

Trade Assurance payment method is welcome.
