Q35Y series hydraulic ironworker machine price cheap with multi function shearing punching

FOB Reference Price:Get Latest Price
US $4,000-4,985 / Sets | 1 Set/Sets Q35Y-16 mm hydraulic ironworker machine manufacturers malaysia (Min. Order)
Model Number:
Q35Y-20
Report Suspicious Activity
Overview
Quick Details
Condition:
New
CNC or Not:
Normal
Power Source:
Hydraulic
Place of Origin:
Anhui, China (Mainland)
Brand Name:
Maofeng
Voltage:
380V/220V Optional
Power(W):
7.5KW
Weight:
2400KG
Dimension(L*W*H):
1950*900*1950mm
Certification:
CE ISO
Warranty:
12 Months
After-sales Service Provided:
Engineers available to service machinery overseas
Product name:
Q35Y-16 mm hydraulic ironworker machine manufacturers malaysia
Application:
Metal Sheet Stamping
Function:
cut punch and shear
Usage:
plate steel square steel round steel angle steel channel steel I-beam
Punching Pressure:
90 T
Max cutting thickness of steel plates:
20 mm
Stroke Length:
80 mm
Throat depth:
355 mm
Punch depth:
20 mm
Max. Punching Hole Diameter:
30 mm
Supply Ability
Supply Ability:
100 Set/Sets per Month Q35Y-16 mm hydraulic ironworker machine manufacturers malaysia
Packaging & Delivery
Packaging Details
Standard export package or according to your requirements. for Q35Y-16 mm hydraulic ironworker machine manufacturers malaysia
Port
Shanghai China
Lead Time :
Shipped in 25 days after payment
Product Description

Q35Y-25 120 ton punching shearing bending notching hydraulic ironworker machine

Description:
1. Robust and accurate steel frame
2. Large punch table with scales
3. Removable bolster for punching flanges and channel and beam
4. 2 independent hydraulic cylinders
5. 2 shielded foot controls
6. 2 Separate Die Openings for over sized punching
7. 5 working stations for wide applications
8. power inching on all 5 work stations
9. plate shear support table and notching table
10. adjustable stroke controls with indicators on both cylinders
11. punching machine: Movable work light
12. overload protection on hydraulic system
13. electric back gauge
14. optional bending attachment

Main Function

hydraulic Iron Worker featuring multiple functions, including: Punch, Angle Shear, Flat Shear, Round/Square Bar Shear, Rec. Notch, V-Notch, Channel Shear, I beam shear, shearing T-bar, Press Brake, Angle Bending and Pipe Notching! It comes standard with: quick-change coupling nut & sleeve, squaring arm with scale, electronic back gauge, gauging table with stops, punching base table, safety guards and more

Standard Tools

(Five sets of punch and die, blades will be installed on the machine)
1 set of Round Punch and Die
1 set of Angle Steel Cutting Blade
1 set of Round & Square bar Cutting Blade
1 set of Flat Bar Cutting Blade
1 set of Notching Blade

Detailed Images

Shearing

Round and square bar shear has multiple holes for a variety of sizes. Adjustment hold down device for round/square bar,channel/beam cutting. Large strong guarding or max safety.
The angle shear has the ability to cut angle at 45 degree both top and bottom leg. This give the operator the ability to make a picture frame corner for perfect welds.Diamond shaped blade for quality cuts that is minimal material lost and deformity.

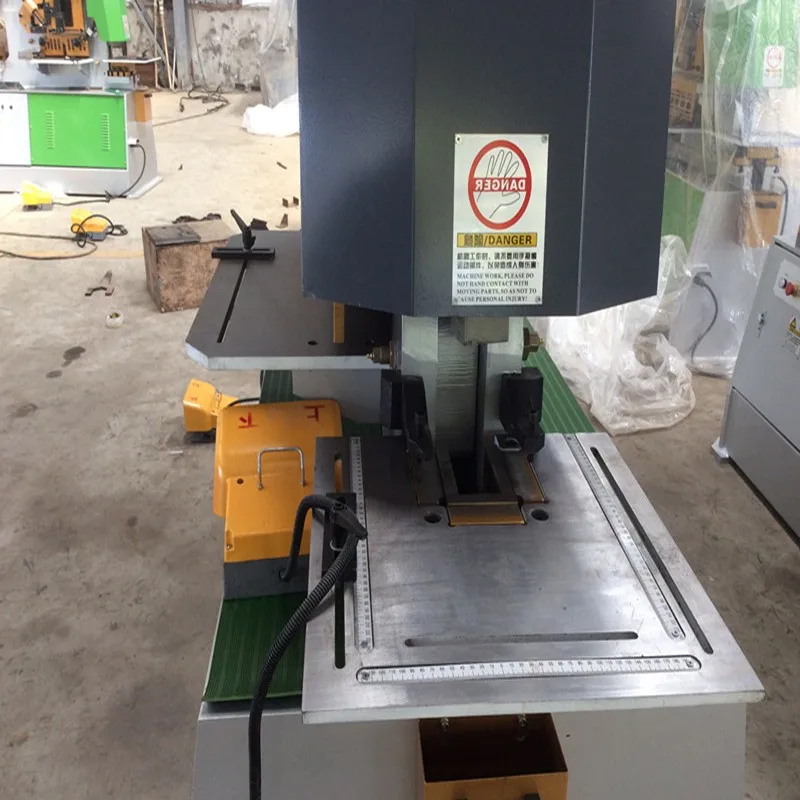

Punching

Full range of universal punches and dies are available. Unique style allows for large angle iron punching and large channel punching.
Large viewing window on stripper swing away design for ease of operation. Large 2 piece gauging table with rulers and stop as standard fittings. Quick change coupling nut and sleeve for rapid replacement of change.

Notching

Unique design allows for cutting of angle and flat bar. Electrical interlock safety guard and 3 gauging stops for precise positioning.
Notching is a metal-cutting process used on sheet metal or thin bar stock, sometimes on angle sections or tube.

Packing and Delivery
Plastic film Wrapping, or by customers special requests
Payment Terms
T/T
FOB
30% T/T in advance, paid the balance before shipment
Trade Insurance
CIF
L/C
L/C at sight or L/C 30 days is also accepted
D/P
D/P is available for long-term cooperated customer
Company Intro

Maanshan Mao Feng Heavy Machinery Co.,Ltd

Was established in 2006 with a registered capital of 15 million yuan. It is Located in Maanshan Bowang Industrial Zone in Anhui province of China (Mainland) near the Nanjing Lukou airport. At present, the company covers an area of 30,000 square meters and has building area up to 18,000 square meters. MF passed the ISO 9001:2008 quality management system standard in 2008, and obtained CE certificate in 2011.

Technician Team Photo

MF's team has more than 150 staffs in which 16 people are senior engineers and technicians  . Our team of Service technicians are trained specialists available to answer your call, and to provide machinery installation, repairs, upgrades, maintenance and more. We are dedicated to create greater value for global customers to enhance the international competitiveness of China metal fabrication machine industry.

Workshop Photo

We are standing by to help you get more out of your metal. Give MF the opportunity to show what our quality tools & services can do for you and your businesses success today and beyond
