WC67Y shear metal sheet cutting machine

FOB Reference Price:Get Latest Price
US $6,865-7,065 / Acres | 1 Acre/Acres (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Anhui, China (Mainland)
Brand Name:
Maofeng
Model Number:
QC11Y
Voltage:
220V/380V
Rated Power:
8.5kw
Dimension(L*W*H):
3220*1480*2080mm
Weight:
5kg
Certification:
CE ISO
Warranty:
1 Year
After-sales Service Provided:
No overseas service provided
Product name:
WC67Y shear metal sheet cutting machine
Cutting thickness:
4-25mm
Cutting length:
2500mm-6000mm
Stroke times:
10~12/min
Color:
Customizable
Cutting material:
Metal Stainless Steel Carbon Steel Aluminum
Control system:
ESTUN E21S
Application:
metal sheet cutting machine
keyword:
sheet cutting machine
Type:
shear cutting machine
SupplyAbility
SupplyAbility:
30 Set/Sets per Day
Packaging & Delivery
Packaging Details
WC67Y shear metal sheet cutting machine
Optional according to customer requirements:
1 , wrapping of winding film
2, wooden box packing
3 , fumigation wooden box packing
Port
shanghai/wuhu
Lead Time :
Within 25 days
Product Description

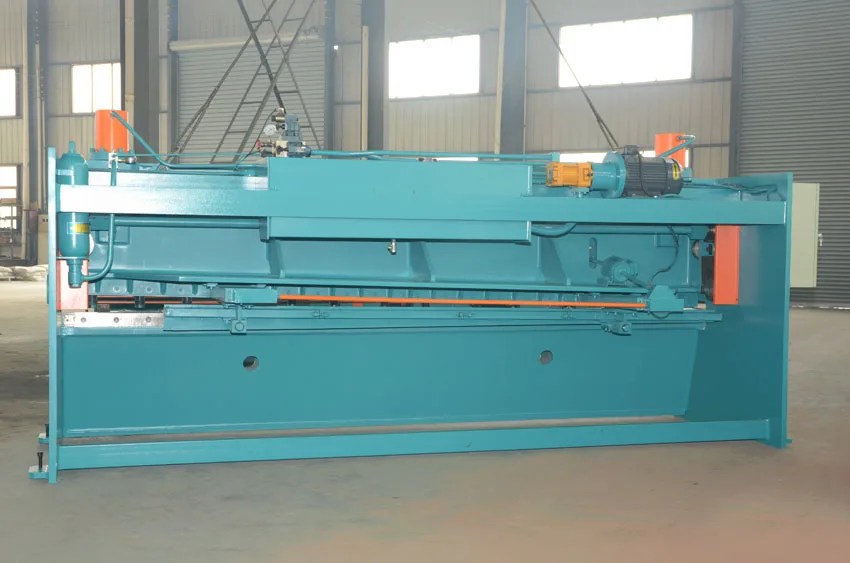

WC67Y shear metal sheet cutting machine

1, Sheet plate welded structure is adopted, with hydraulic transmission and accumulator return,
typical of an easy operation, reliable performance, and nice appearance.
2, Indication by indicator is provided for adjustment of blade clearance, for a handy
and prompt adjustment.
3, Alignment device with lighting and control device for shearing stoke bar and to reduce frictional resistance.
4, Rolling material support ball is provided, to minimize fish tail with sheet bar and to
reduce frictional resistance.
5, Rear stopper is fitted with electric adjustment and manual adjustment devices, and
digital device is available for display if size of stopper and times of shearing
6, Rear stopper is fitted with coder and digital display system, So that the position of
rear stopper is displayed more accurately, thus to further enhance the shearing
precision if this machine.

Detailed Images

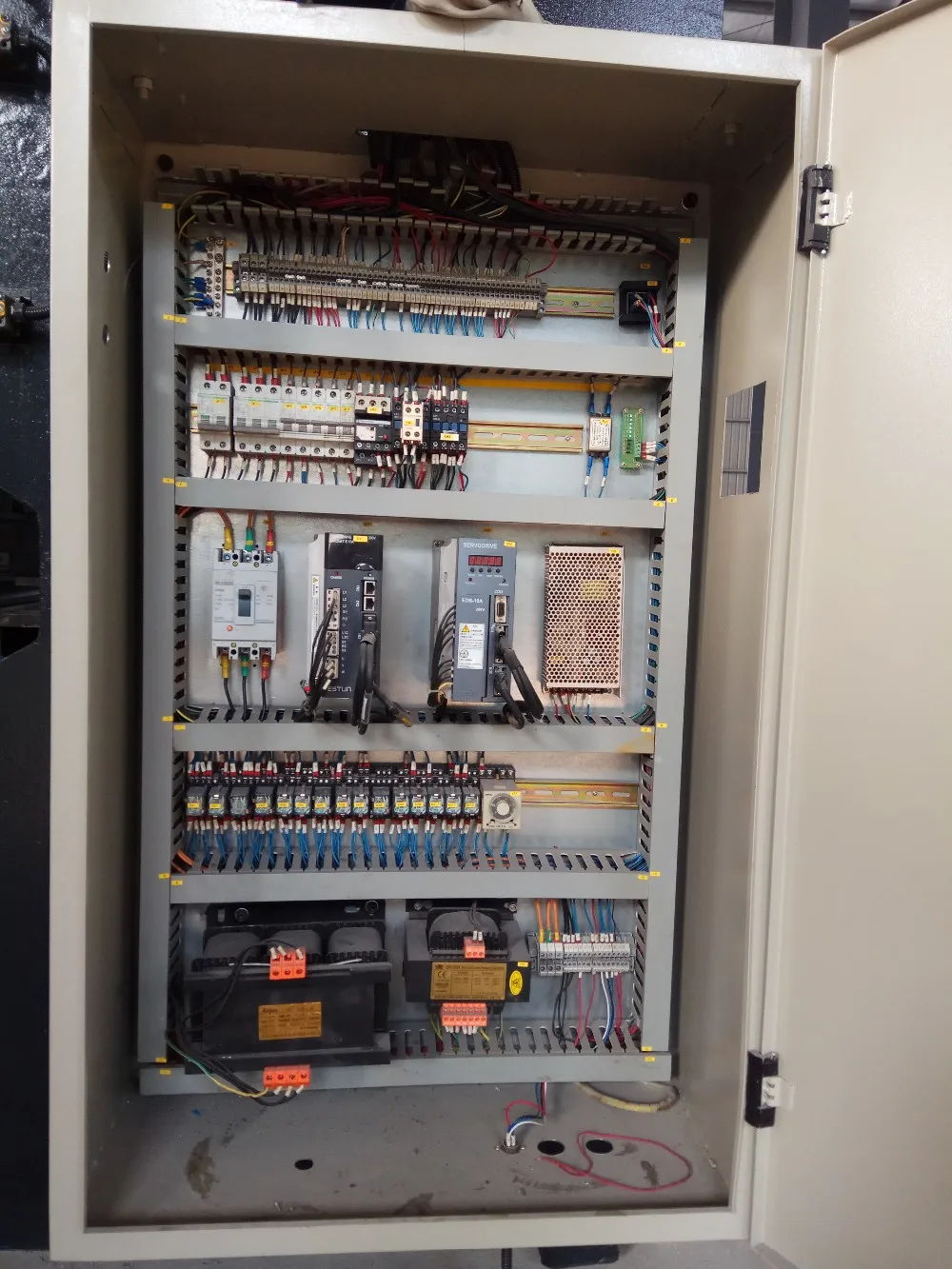

1.Electrical system

1)The machine uses 380 v power and three phases four wires system.
2)Special PLC control circuit adopts advanced hydraulic control technology, longer life stronger anti-interference ability.
3)With self-developed proximity portable foot switch.
4)Electrical electronic components and materials are in accordance with national standards
5)The motor main circuit is equipped with short circuit overload and lack-phase protection.

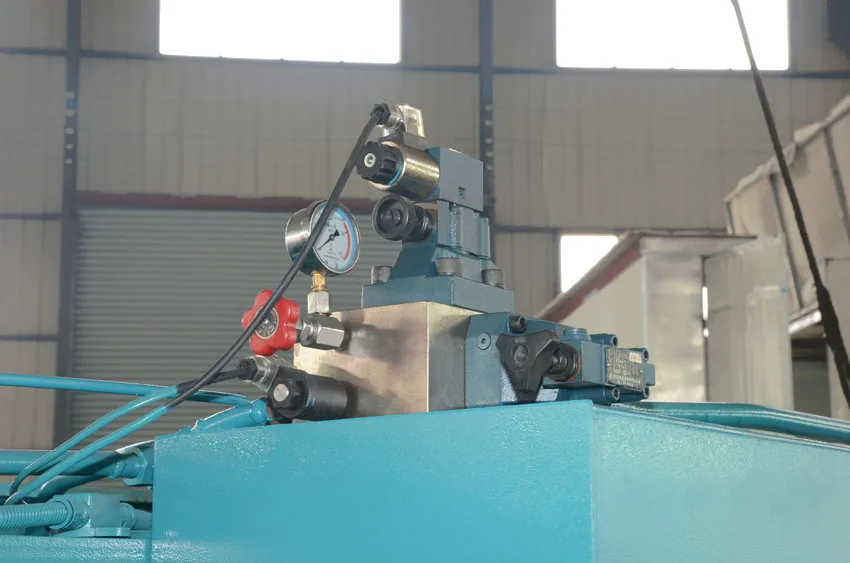

2.Hydraulic drive system and working principle

1)Oil pump adopts gear pump, pressure stability, and low noise.

2)Hydraulic system adopts the integrated hydraulic valve group, reliable performance, and beautiful appearance.
3)Accumulator is filling nitrogen, and inflation pressure is 9 Mpa.
4)The shearing and return stroke of top rest downstream:

5)The decrease and increase of shearing angle

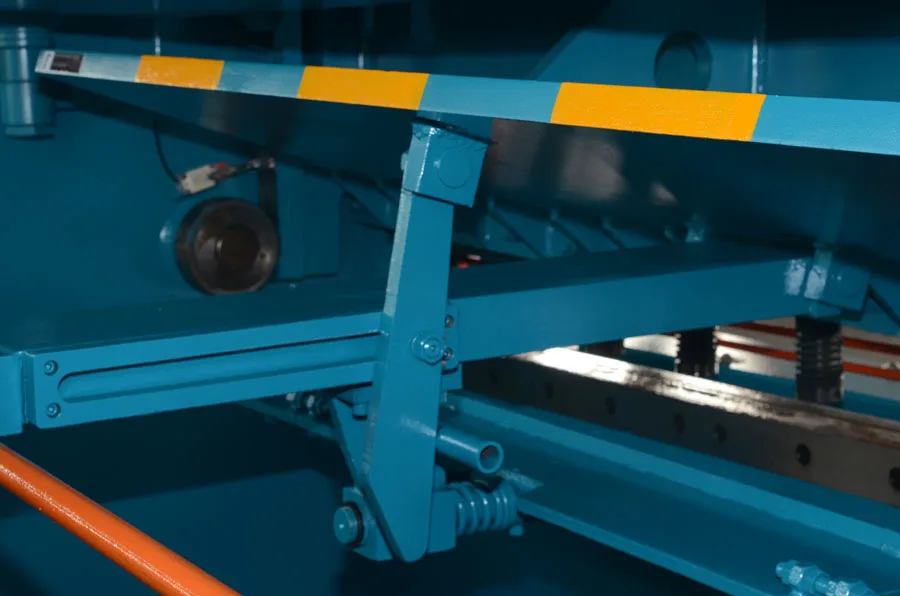

3.Backguage behind press:

a.Backguage range is 20-700mm.
b.Backguage adopts the ball screw, optical axis orientation, smooth transmission and the high precision adjustment.
c.Backguage is driven by 0.37 KW worm reducer, torque by the worm gear box to slow down to ball screw, so as to realize the movement of backguage.

3.machine structure

1)Frame:a.Frame welded by steel plate into a frame structure, processed by vibration aging, good rigidity.
b.Work surface is equipped with auxiliary cutter holder, easy to under knife for micro-adjustment.
c.Equipped with ball feed unit, convenient and quick operation.2)Rapid tool setting:
Under the action of irregular building, the upper and lower blade gap can be adjusted rapidly and accurately.
3)Pressing device:a.Pressure device equipped with damping pad to reduce the mechanical noise
b.The force increase with the thickness of the sheet.

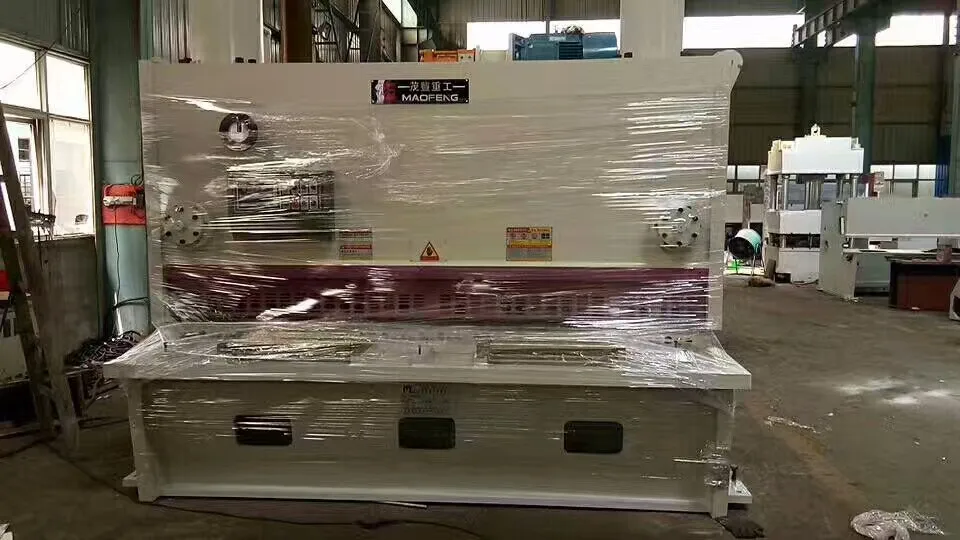

Packing and Delivery
we will use pe film for packing or wooden box.
or pack it according to customers special request.
Payment Terms
T/T
FOB
30% T/T in advance, paid the balance before shipment
Trade Insurance
CIF
L/C
L/C at sight or L/C 30 days is also accepted
D/P
D/P is available for long-term cooperated customer
Company Intro

Maanshan Mao Feng Heavy Machinery Co.,Ltd

MF Machinery started from scratch by the Tao Brothers in 2006 renting a old factory in Maanshan Bowang Industrial Zone in Anhui province of China. At present, the company had expanded to cover an area of 30,000 square meters and has building area up to 18,000 square meters till now. MF passed the ISO 9001:2008 quality management system standard in 2008, and obtained CE certificate in 2011.

Maanshan Mao Feng Heavy Machinery Co.,Ltd

Was established in 2006 with a registered capital of 15 million yuan. It is Located in Maanshan Bowang Industrial Zone in Anhui province of China (Mainland) near the Nanjing Lukou airport. At present, the company covers an area of 30,000 square meters and has building area up to 18,000 square meters. MF passed the ISO 9001:2008 quality management system standard in 2008, and obtained CE certificate in 2011.

Technician Team Photo

MF's team has more than 150 staffs in which 16 people are senior engineers and technicians  . Our team of Service technicians are trained specialists available to answer your call, and to provide machinery installation, repairs, upgrades, maintenance and more. We are dedicated to create greater value for global customers to enhance the international competitiveness of China metal fabrication machine industry.

Workshop Photo

We are standing by to help you get more out of your metal. Give MF the opportunity to show what our quality tools & services can do for you and your businesses success today and beyond
