QC11k 8*3200 series hydraulic guillotine CNC shearing machine

FOB Reference Price:Get Latest Price
US $8,358-8,558 / Set | 1 Set/Sets QC11Y 6*3200 series hydraulic guillotine CNC shearing machine (Min. Order)
Supply Ability:
30 Set/Sets per Day QC11Y 6*3200 series hydraulic guillotine CNC shearing machine
Port:
shanghai/wuhu
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Anhui, China (Mainland)
Brand Name:
Maofeng
Model Number:
QC11Y
Voltage:
220V/380V
Rated Power:
8.5kw
Dimension(L*W*H):
3920*1480*2080mm
Weight:
6kg
Certification:
CE ISO
Warranty:
1 Year
After-sales Service Provided:
No overseas service provided
height of the worktable from the ground:
780mm
blade length:
3300mm
Distance between columns of body:
3500mm
Stroke times:
9~11/min
Maximum travel of rear gear:
600mm
Product name:
QC11Y Hydraulic Guillotine Shearing Machine
Color:
Customizable
Cutting material:
Metal Stainless Steel Carbon Steel Aluminum
Application:
Sheet Metal Industry
Type:
Hydraulic Cutting Tools
Packaging & Delivery
Packaging Details
Optional according to customer requirements:
1 , wrapping of winding film
2, wooden box packing
3 , fumigation wooden box packing
Delivery Time
Within 25 days
Product Description

Product Application

1, Sheet plate welded structure is adopted, with hydraulic transmission and accumulator return,
typical of an easy operation, reliable performance, and nice appearance.
2, Indication by indicator is provided for adjustment of blade clearance, for a handy
and prompt adjustment.
3, Alignment device with lighting and control device for shearing stoke bar and to reduce frictional resistance.
4, Rolling material support ball is provided, to minimize fish tail with sheet bar and to
reduce frictional resistance.
5, Rear stopper is fitted with electric adjustment and manual adjustment devices, and
digital device is available for display if size of stopper and times of shearing
6, Rear stopper is fitted with coder and digital display system, So that the position of
rear stopper is displayed more accurately, thus to further enhance the shearing
precision if this machine.

 QC11Y6*3200Technical parameter

Maofeng
Maximum shear plate thickness
8
mm
Maximum shear width
3200
mm
Shear strength
450
N/m㎡

Maofeng
Shear angle
0.5~1.5
degree
Maximum stroke of rear stopper
600
mm
Stroke times
9~11
second/min

Maofeng
Distance between columns of body
3500
mm
blade length
3300
mm
Table height from ground
780
mm
Certifications
Detailed Images

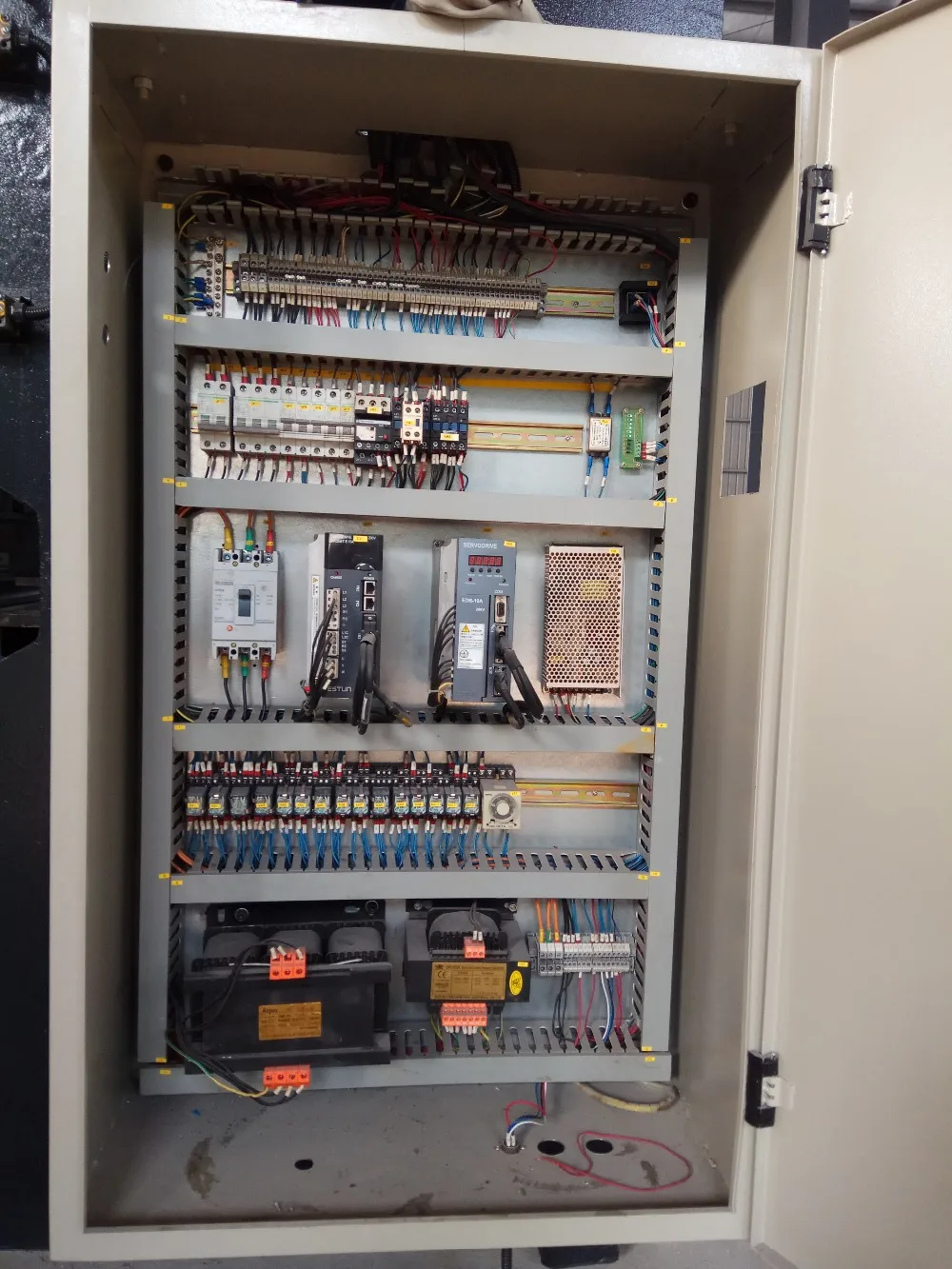

1.Electrical system

1)The machine uses 380 v power and three phases four wires system.
2)Special PLC control circuit adopts advanced hydraulic control technology, longer life stronger anti-interference ability.
3)With self-developed proximity portable foot switch.
4)Electrical electronic components and materials are in accordance with national standards
5)The motor main circuit is equipped with short circuit overload and lack-phase protection.

2.Hydraulic drive system and working principle

1)Oil pump adopts gear pump, pressure stability, and low noise.

2)Hydraulic system adopts the integrated hydraulic valve group, reliable performance, and beautiful appearance.
3)Accumulator is filling nitrogen, and inflation pressure is 9 Mpa.
4)The shearing and return stroke of top rest downstream:

5)The decrease and increase of shearing angle

3.blocking behind press:

a.Backguage range is 20-700mm.
b.Backguage adopts the ball screw, optical axis orientation, smooth transmission and the high precision adjustment.
c.Backguage is driven by 0.37 KW worm reducer, torque by the worm gear box to slow down to ball screw, so as to realize the movement of backguage.

3.machine structure

1)Frame:a.Frame welded by steel plate into a frame structure, processed by vibration aging, good rigidity.
b.Work surface is equipped with auxiliary cutter holder, easy to under knife for micro-adjustment.
c.Equipped with ball feed unit, convenient and quick operation.2)Rapid tool setting:
Under the action of irregular building, the upper and lower blade gap can be adjusted rapidly and accurately.
3)Pressing device:a.Pressure device equipped with damping pad to reduce the mechanical noise
b.The force increase with the thickness of the sheet.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
123 (L) * 456 (W) * 789 (D)
Weight
1.2 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Packaging
Size
123 (L) * 456 (W) * 789 (D)
Weight
1.2 T



Packaging Details
