Q35Y-16 hydraulic angle channel cutting ironworker punching and shearing machine with bending function

FOB Reference Price:Get Latest Price
US $4,560-4,985 / Sets | 1 Set/Sets Factory Direct Sale Hydraulic Metal Ironworker,Iron Workers,Meta (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
CNC or Not:
Normal
Power Source:
Hydraulic
Place of Origin:
Anhui, China (Mainland)
Brand Name:
Maofeng
Model Number:
Q35Y-16
Voltage:
380V/220V Optional
Power(W):
5.5KW
Weight:
1800KG
Dimension(L*W*H):
1740*810*1830
Certification:
CE ISO
Warranty:
12 Months
After-sales Service Provided:
Engineers available to service machinery overseas
Product name:
hydraulic angle channel cutting ironworker machine
Application:
Metal Sheet Stamping
Function:
cut punch and shear
Usage:
plate steel square steel round steel angle steel channel steel I-beam
Punching Pressure:
60 T
Max cutting thickness of steel plates:
16 mm
Stroke Length:
80 mm
Throat depth:
300 mm
Punch depth:
16 mm
Max. Punching Hole Diameter:
25 mm
SupplyAbility
SupplyAbility:
100 Set/Sets per Month Factory Direct Sale Hydraulic Metal Ironworker,Iron Workers,Meta
Packaging & Delivery
Packaging Details
Standard export package or according to your requirements. for Factory Direct Sale Hydraulic Metal Ironworker,Iron Workers,Metal Hole Punch and Shear for sale.
Port
Shanghai China
Lead Time :
Shipped in 25 days after payment
Product Description

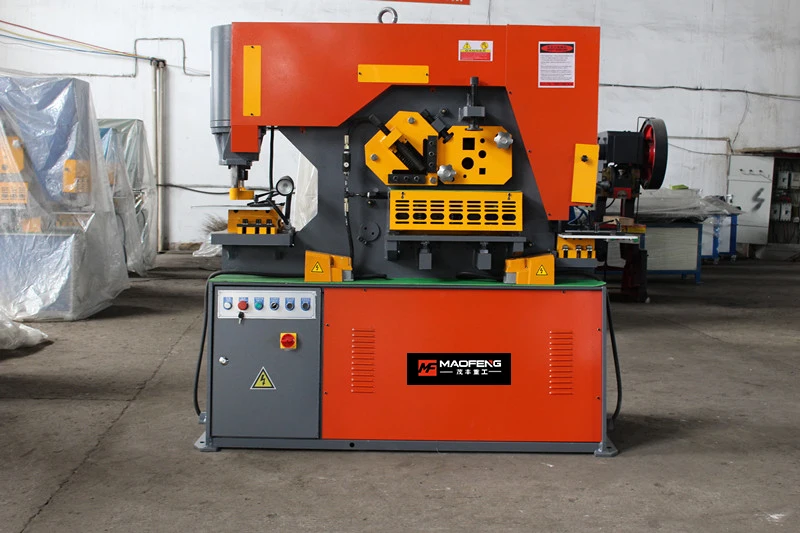

Q35Y-16 hydraulic angle channel cutting ironworker punching and shearing machine with bending function

IRONWORKER MACHINE Description:

1. Robust and accurate steel frame
2. Large punch table with scales
3. Removable bolster for punching flanges and channel and beam

4. 2 independent hydraulic cylinders
5. 2 shielded foot controls

6. 2 Separate Die Openings for over sized punching
7. 5 working stations for wide applications
8. power inching on all 5 work stations
9. plate shear support table and notching table
10. adjustable stroke controls with indicators on both cylinders
11. punching machine: Movable work light
12. overload protection on hydraulic system
13. electric back gauge
14. optional bending attachment
Applications:
Multiple functions including-Punch, Angle Shear, Flat Shear, Round, Square Bar Shear, Rec. Notch, V-Notch, Channel Shear,I beam shear,shearing T-bar, Press Brake, Angle Bending and Pipe Notching! It comes standard with: quick-change coupling nut & sleeve, squaring arm with scale, electronic back gauge, gauging table with stops, punching base table, safety guards and more.


Main parameters:

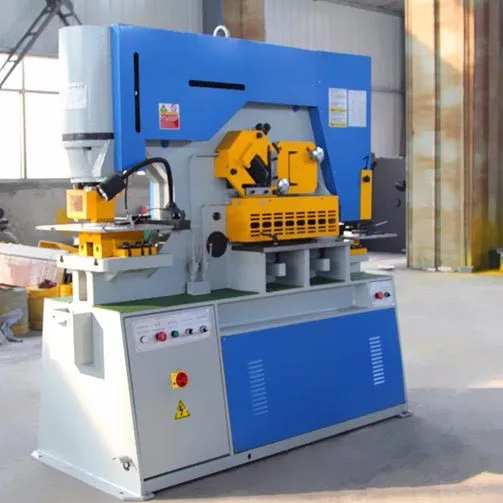

Detailed Images

Shearing part: Angle steel, plate, round bar, square bar,U steel, T steel shearing cutting

V notching , corner cutting

Plate punching, can do bending with bending tooling

Packing & Delivery
Packaging
Size
1740*810*1830mm
Weight
1.8T



Packaging Details
Packaging customers can choose: winding film packaging, wooden case packing

Delivery: within 10 days after receiving the advance payment

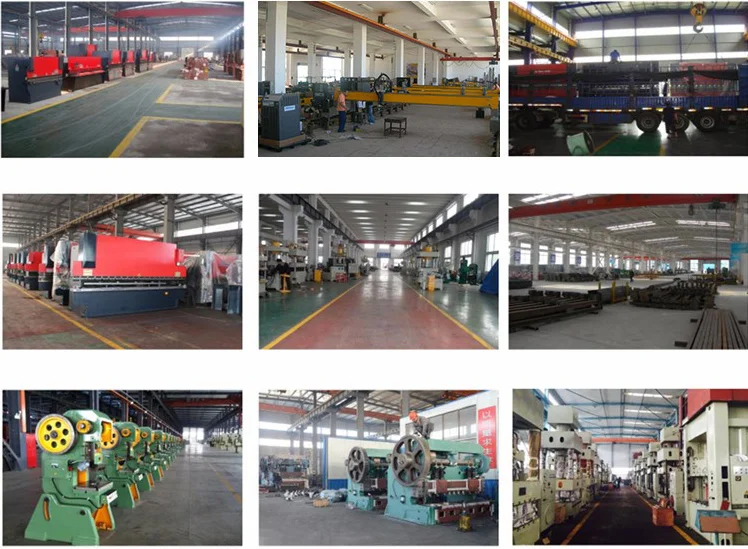

Our Company

MAOFENG Heavy Machinery Manufacturing CO.,LTD is an independent company. It’s the joint venture set up by the HK Maofeng International Machine tool Co.,Ltd and Yaxin machine equipment Co.,Ltd. It is located in Bowang area and 20km from Nanjing lukou airport, 260km from shanghai.It is committed to providing the best cost-effective sheet metal processing equipment for customer all over the world.
The products have reached to the global industry advanced level relies on the global market advantage of Maofeng,product line of Yaxin tool,the R&D team from Shanghai Jiaotong university&Maanshan Industry university,the integration of Germany sheet metal processing equipment&technology. Now the company has a strong R&D team, of which more than 7 staff get the master’s degree. Huge sales and service network, ttl around 93.The product line is the most comprehensive, covering all areas of mechanical processing.

FAQ

1.Are you factory or foreign trade company?
We are industry and trade integration.

2.What shall we do if don't know how to operate your machine after bought from you?
We have detailed installation and operating instructions attached,it is very simple. We have telephone and email support at 24 hours a day.

3.What are your payment terms?
We support T/T, L/C, Western Union and so on. Other ways can also be received after we both sides discussion and agreement.
