WC67 simple CNC NC hydraulic sheet metal press brake bending machine for sale

FOB Reference Price:Get Latest Price
US $3,000-80,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Anhui, China (Mainland)
Brand Name:
MF Heavy Machinery
Model Number:
WC67K-40T/2500
Machine Type:
Press Brake
Raw Material:
Sheet / Plate Rolling
Material / Metal Processed:
Stainless Steel
Power:
Cnc, 3~60kw
Automation:
Automatic
Extra Services:
Machining
Certification:
CE
After-sales Service Provided:
Engineers available to service machinery overseas
Model:
WC67 simple CNC NC hydraulic sheet metal press brake bending machine
Nominal Force:
30~500 TON
Worktable Length:
1.3~10 M
Poles Distance:
1850
Throat Depth:
230mm
Slider Stroke:
100mm
Max Height:
320mm
Weight:
1.2~40 TON
Size:
3~120 Cubic meter
SupplyAbility
SupplyAbility:
450 Set/Sets per Quarter
Packaging & Delivery
Packaging Details
Inside with three layers waterproof plastic film
WC67 simple CNC NC hydraulic sheet metal press brake bending machine for sale
Port
Shanghai port or as your demand
Lead Time :
20 workdays
Video Description
Product Description

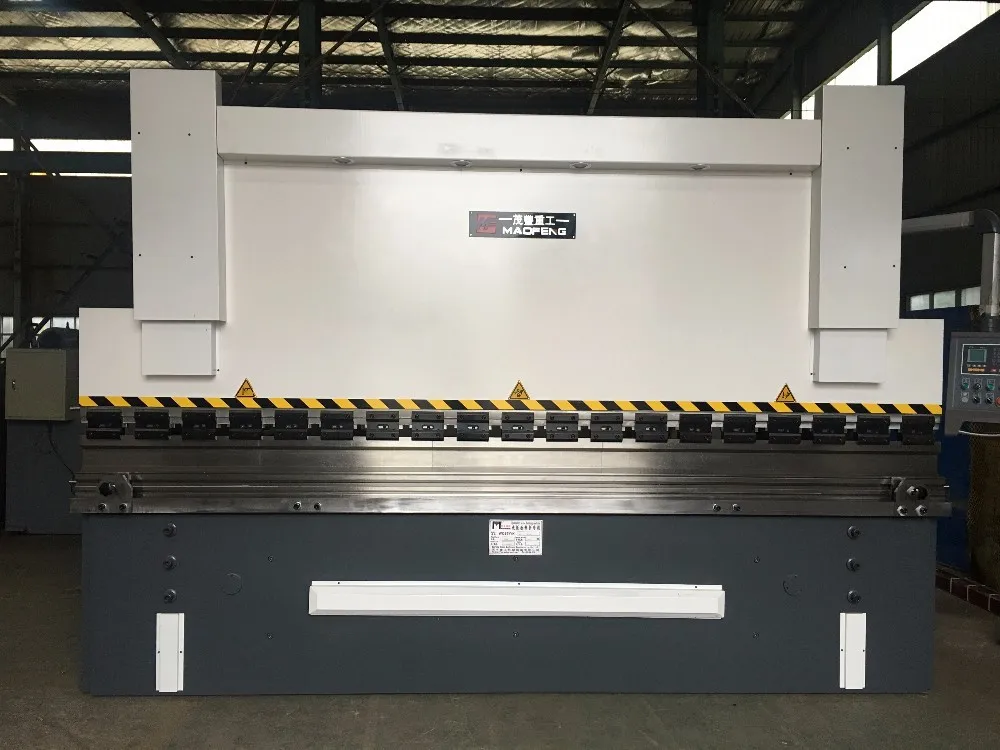

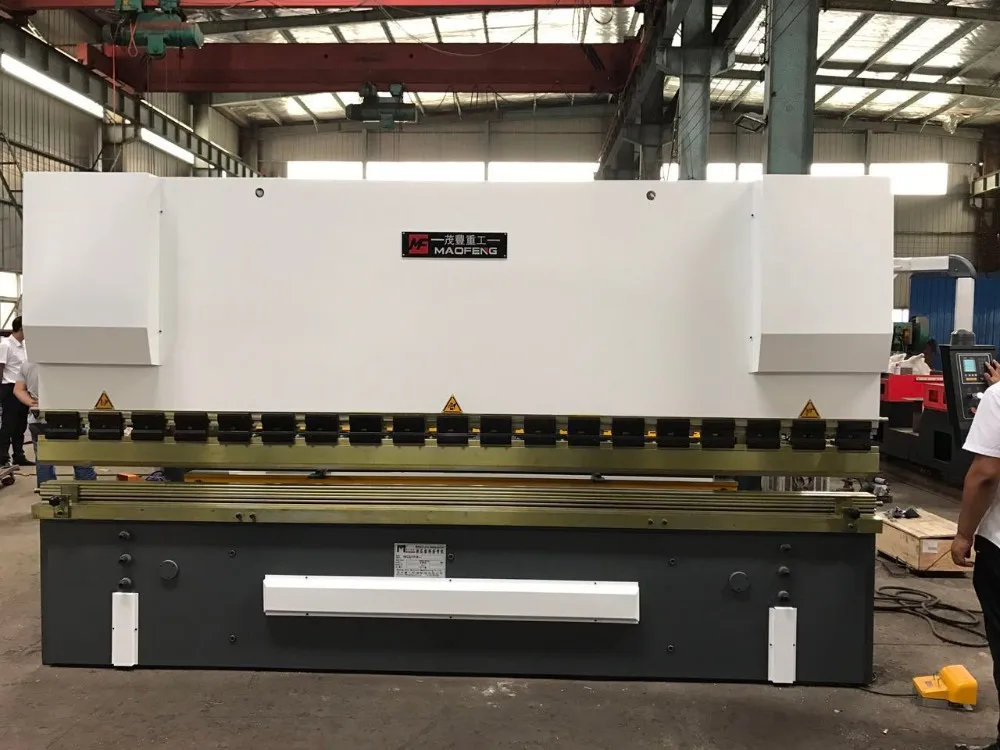

WC67 simple CNC NC hydraulic sheet metal press brake bending machine for sale

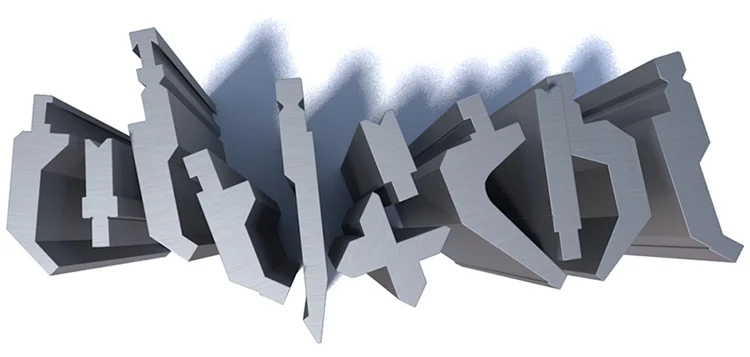

Press brake is a kind of machine specially in bending metal sheet, mainly used in automotive manufacturing, kitchen appliance manufacturing, electricity poles, lamp posts, ship-building, military industry, steel industry, mechanical manufacturing. Bending dies can be designed and changed according to customers’ different needs.

Main types of press brake produced by our company are: manual torsion, CNC torsion press brake, electro-hydraulic press brake, large electro-hydraulic synchronization press brake Currently, our biggest press brake equipment is 1000T/10000, production for many years, and stable performance.

Features

1.The whole machine is in sheet plate welded structure,with internal stress eliminated by vibration aging technology,high strength and good rigidity of machine.
2. Double hydraulic oil cylinder is applied for upper transmission,provided with mechanical limit stopper and synchronous torsion bar,typical of stable and reliable operation,as well as high precision.
3. Electrical control and manual fine-tuning mode are adopted for distance of rear stopper and stroke of gliding block,and fitted with digital display device,easy and quick in use.

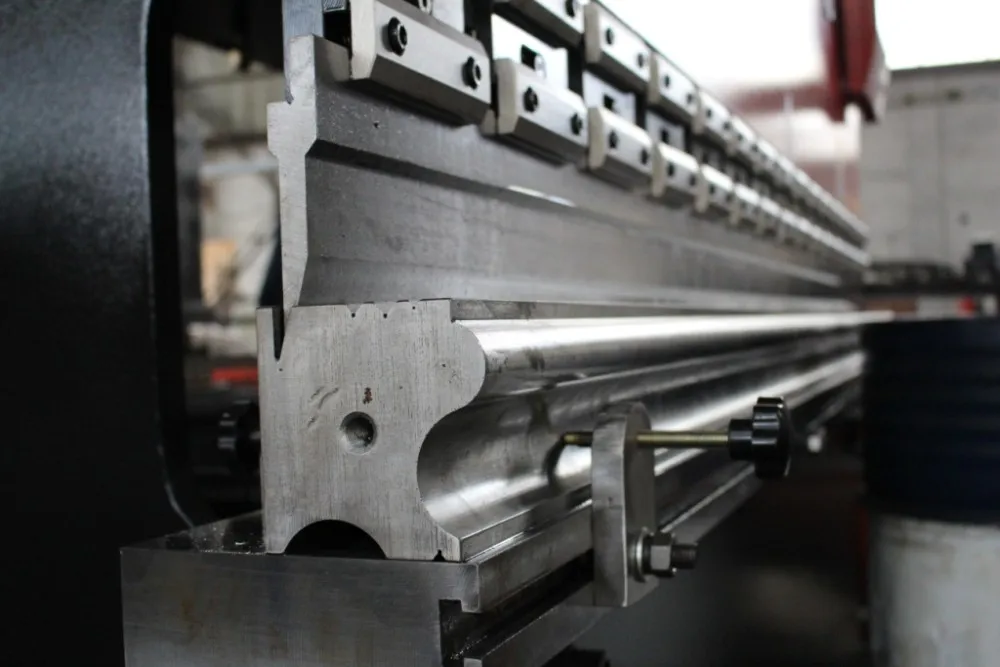

4. Upper die is fitted with deflection compensation device.

Detailed Images
Related Product

Digital Display Press Brake

Backgauge &ram stroke electrical control
Manual readjust
upper die deflection compensation

NC 2 Axis Press Brake

Standard two axis(Y-X)

Ball screw and linear guide

Double Servo Motor

CNC Multi Axis Press Brake

Up to 6 axes (Y1, Y2, and X. Z1, Z2, R, auxiliary axes)

CNC crowning control

USB,interfacing

HOW TO CHOOSE CONTROL SYSTEM OR HOW MANY AXIS YOU SHOULD HAVE ?

    Once the customer determines the material that they will be bending, the next step in picking the right brake is to look at the number of axes they will want to control (with or without CNC), from the Y-axis (usually available as separate Y1 and Y2 axes) to things like crowning and even sheet following systems, each of which can be considered an axis.
    Most customers will probably want to measure their flange length as they bend, so they will want an X-axis back gauge in order to do that. When the inserted material touches the back gauge they know they are at their correct point to bend.
    The customer also needs to determine if they are going to be making multiple bends, such as putting a 45° bend into a piece of material and then making another bend further into that same piece. If that’s the case, they will need an R-axis in order to raise the back gauge up and down. They would also need to decide if they want a manual R-axis or a powered R-axis.
    Next they need to consider whether or not they will be running small parts on their press brake. For example, if the customer is going to be alternating between 500mm and 3000mm wide pieces, they may want powered Z1 and Z2 fingers so they won’t have to keep manually adjusting the width of the fingers for each different bend.

    The customer also needs to see if they will be bending on an angle — for example, if they are bending a flange that is 900mm deep on one side and 600mm on the other side. If that is the case, then they will want a Z-Prime axis (also known as a Delta X-axis) so that they can adjust their press brake on an angle with one fixed finger and a second one that can go plus or minus 300mm. They may also want to consider separate Z1 and Z2 axes to accomplish the same thing.
    Crowning must also be considered. Will the customer be bending anything heavy enough that they will need to worry about crown? Most shops will at least occasionally have jobs big enough that crowning will be an issue, so does the customer want to be able to adjust crowning on their bed to compensate for it? If so, do they want manual crowning or CNC crowning? With manual crowning you have a handle on the side of your brake that you adjust by hand and you have to know per job what the crown will be for that material, that width, that length and that thickness. With CNC crowning the control figures all that out for you and adjusts the crown on your press brake accordingly.

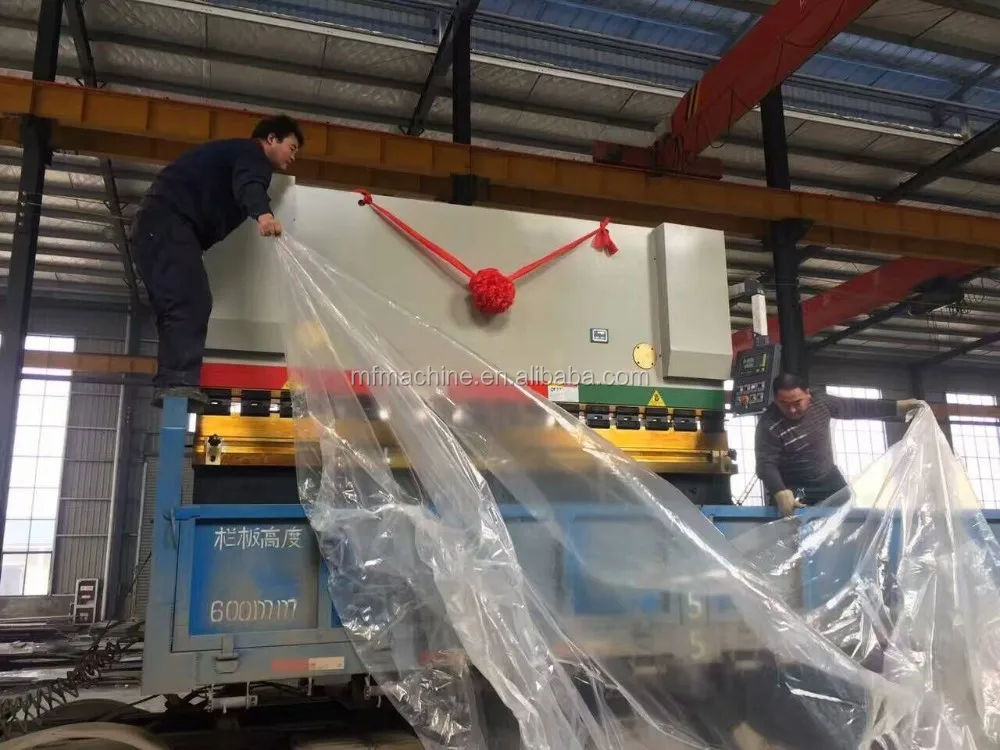

Packing and Delivery
Plastic film Wrapping, or by customers special requests
Payment Terms
T/T
FOB
30% T/T in advance, paid the balance before shipment
Trade Insurance
CIF
L/C
L/C at sight or L/C 30 days is also accepted
D/P
D/P is available for long-term cooperated customer
Company Intro

Maanshan Mao Feng Heavy Machinery Co.,Ltd

MF Machinery started from scratch by the Tao Brothers in 2006 renting a old factory in Maanshan Bowang Industrial Zone in Anhui province of China. At present, the company had expanded to cover an area of 30,000 square meters and has building area up to 18,000 square meters till now. MF passed the ISO 9001:2008 quality management system standard in 2008, and obtained CE certificate in 2011.

Maanshan Mao Feng Heavy Machinery Co.,Ltd

Was established in 2006 with a registered capital of 15 million yuan. It is Located in Maanshan Bowang Industrial Zone in Anhui province of China (Mainland) near the Nanjing Lukou airport. At present, the company covers an area of 30,000 square meters and has building area up to 18,000 square meters. MF passed the ISO 9001:2008 quality management system standard in 2008, and obtained CE certificate in 2011.

Technician Team Photo

MF's team has more than 150 staffs in which 16 people are senior engineers and technicians  . Our team of Service technicians are trained specialists available to answer your call, and to provide machinery installation, repairs, upgrades, maintenance and more. We are dedicated to create greater value for global customers to enhance the international competitiveness of China metal fabrication machine industry.

Workshop Photo

We are standing by to help you get more out of your metal. Give MF the opportunity to show what our quality tools & services can do for you and your businesses success today and beyond
