Quick Details

  • Condition: New
  • Place of Origin: Anhui, China (Mainland)
  • Brand Name: maofeng
  • Model Number: WC67K
  • Machine Type: Beading Machine
  • Raw Material: Sheet / Plate Rolling
  • Material / Metal Processed: Stainless Steel
  • Power: Hydraulic
  • Automation: Automatic
  • Extra Services: End Forming
  • Certification: CE
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Product name: ventilation grilles stainless steel accurl press brake
  • Usage: Sheet Folding
  • Type: Hydraulic press brake
  • Warranty: 1year
  • Voltage: 380V/220V
  • Length of table: 1600mm
  • Throat depth: 200mm
  • Ram stroke: 80mm
  • Main motor: 3 KW
  • Dimensions(L*W*H): 1700*900*1650mm

Packaging & Delivery

Packaging Details Standard export package. for ventilation grilles stainless steel accurl press brake, hydraulic sheet bending machine, guillotijnge and bending machines.
Delivery Time shipped in 20 days after payment
Product Description

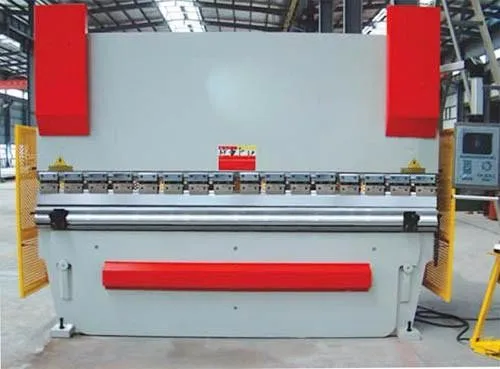

ventilation grilles stainless steel accurl press brake, hydraulic sheet bending machine, guillotijnge and bending machines

Production description:

Special numeric-control system is fitted with mainframe of the bending machine; Multi-work step programming functions is able to achieve an automatic operation an continuous positioning of multi-step gliding block;

The machine is provided with bend counting function.for a real-time display of processing quality and power-failure memory of positions of stopper and block .as well as procedure and parameters.

Imported ball bearing lead screw and linear guide rail stopper,for processing precision of machine to be higher

The hydraulic or mechanical deflection compensation ,available in the table on the work-piece precision uniform,hydraulic deflection compensation on by a group of installation in the next table oil cylinder composition ,can make workbench relative motion,formation and convex ideal curve,ensure that stress and slide block after the relative position relation unchanged. By numerical control system of compensation according to the thickness,mould and material properties to be automatic calculated and determined.

Detailed Images

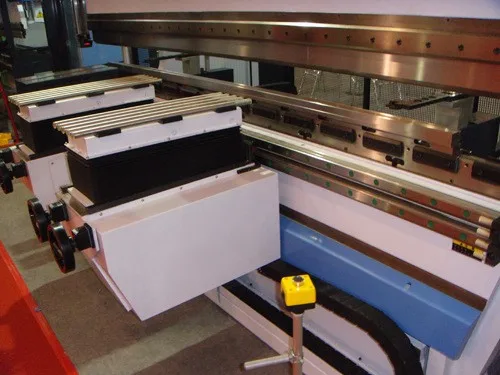

High precision backguage

satisfy with your high precision requirements of press brake, you can tell me your specific precision, I will introduce suitable one.

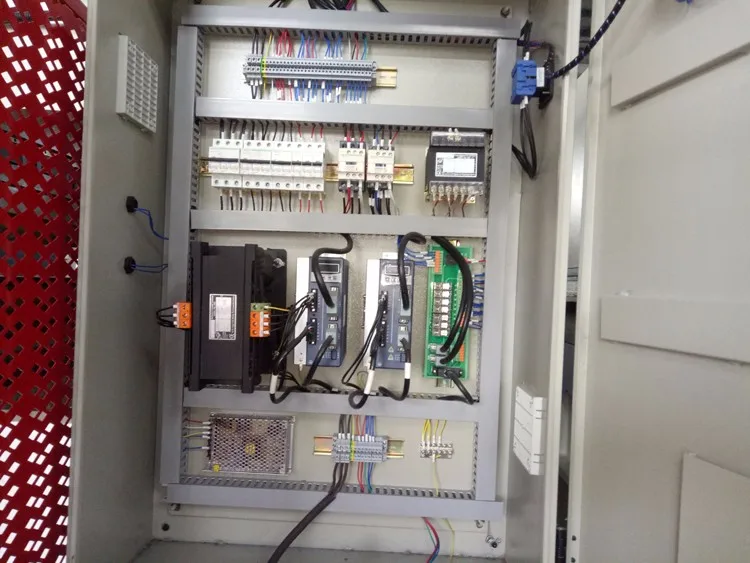

Electrical system

high quality and stable electrical system of press brake.

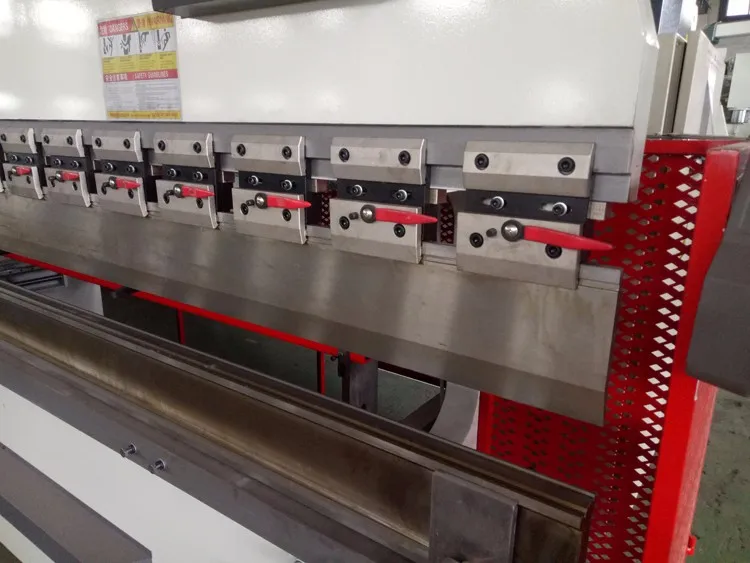

Quick die changing and clamping and wedge clamps adjusting.(optional)

accoring to your requirements, you can choose quick die or common die of bending machcine.

CTP2007 CNC System

1. seven-inch high-definition touch-screen color display

2. Menu-driven programming interface

3. Equipped with servo motors

4. CANopen fieldbus control mode, completely eliminate the interference

positioning error

5. Support sngle programming, the system automatically calculates the depth of bending sheet metal

6. Slider position control

7. Backgauge position control

8. Dwell time setting

9. 20 programs, each program including 20 steps

10. soft limit function

11. power cut memory

E210 CNC System

1.High-deflinition 5.6"TFT LCD display 640*480 pixels

2.100 program memory, each program including 25 steps

3.the angle programming, automatically calculstes the bending depth

4.mold library: the upper die 15 and lower die 15

5.Backgauge tolerance compensation

6.I/O port configuration flexibility, custome manifolds

7.Automatic homing, power cut memory

8.X-axis positioning accuracy:0.01mm, Y axis positioning accuracy:0.01mm

DA-41 CNC System

1. Servo control technology

2. 4.7"bright LCD display, multi-language interface including Chinese

3.Mold parameter, bending angle programming

4. Store 100 programs, each includes 25 steps

5.Escape materials programmable, counting the processing,power cut momory function, Inch/metric conversion

Our Company
FAQ

1.Are you factory or foreign trade company?
We are industry and trade integration.

2.What shall we do if don't know how to operate your machine after bought from you?
We have detailed installation and operating instructions attached,it is very simple. We have telephone and email support at 24 hours a day.

3.What are your payment terms?
We support T/T, L/C, Western Union and so on. Other ways can also be received after we both sides discussion and agreement.
