J23 series Mechanical Power Sheet Metal Stamping Press Machine

FOB Reference Price:Get Latest Price
US $2,000-5,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
CNC or Not:
Normal
Power Source:
Mechanical, Mechanical
Place of Origin:
Anhui, China (Mainland)
Brand Name:
maofeng
Model Number:
J23-10
Voltage:
380V/220V Optional
Power(W):
1.1kw;1.5kw,3kw,4.5kw,5.5kw,7.5kw or other
Weight:
576kg
Dimension(L*W*H):
895*713*1668mm or other
Certification:
CE ISO
Warranty:
1 Year
After-sales Service Provided:
Engineers available to service machinery overseas
Color:
As customers' request
Product name:
J23 series Mechanical Power Sheet Metal Stamping Press Machine
Application:
Metal Sheet Stamping
Material:
Stainless Steel
Usage:
Sheet metal industry
Function:
Steel Metal Punching
Keyword:
Punching machine
Slide stroke:
60mm
Supply Ability
Supply Ability:
50 Set/Sets per Month
Packaging & Delivery
Packaging Details
wooden case for J23 series Mechanical Power Sheet Metal Stamping Press Machine
Port
Any port in China
Lead Time :
Shipped in 15days after the payment



Product Description

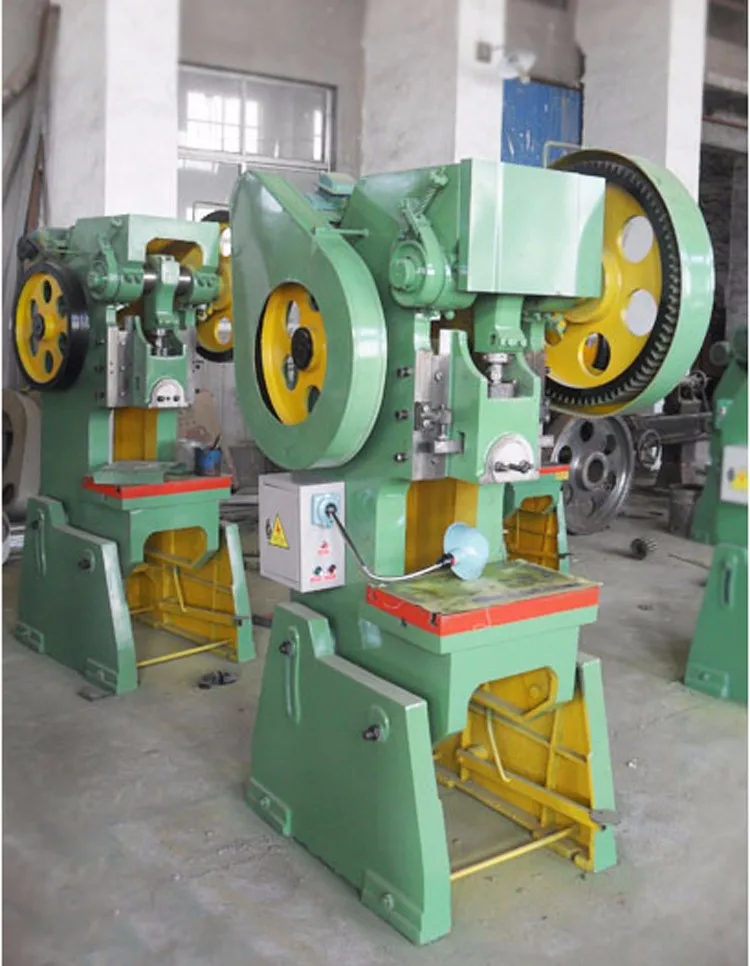

 J23 series Mechanical Power Sheet Metal Stamping Press Machine



PRODUCT DESCRIPTION



J23 Series Presses is one of the new generation of plate process and developed by Krrass company,The press is for cutting, punching, blanking, bending and light stretching work.



C- frame provides maximum rigidity and minimum deflection for accurate parts and long tool life.Steel-welded frame, high rigidity and less deformation Compact.Thick plates and large columns provide you with the stable platform you need for your demanding application.



Wide body frame eliminating vibration for improved ide life and machine,which means economical and practical.Operation space is wide, and the movable bolster could be moved out of frame to set the die. The structure is simple beautiful.



High accuracy, high efficiency, simple and convenient operation, good performance, favorable price and best service.

w.jpgJ21S-(4)

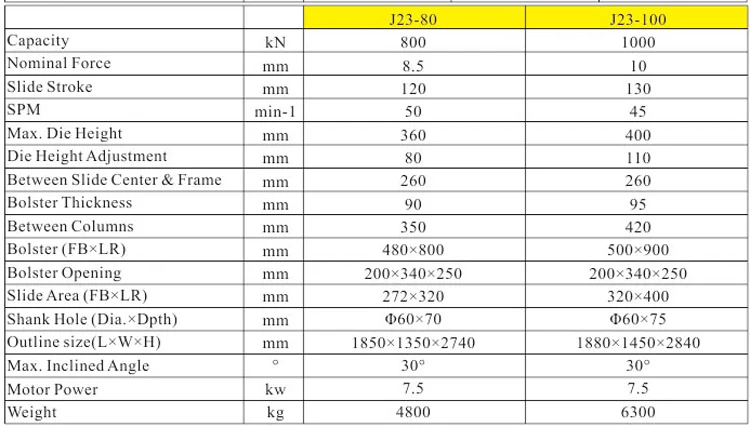

TECHNICAL PARAMETERS





Detailed Images

 TIM20170801142236TIM20170801142131TIM20170801142200TIM20170801142055

Company Information



The History of MaoFeng Heavy Machinery Co.,Ltd

  • In 2000 Tao Family rigistered MF Machinery Company in No.130-132 Des Voeux Road Central, Hong Kong, China.(Tel:+8615155356692  Site:www.mfmachinery.com)
  • In 2003 Indonesia agency opened in Jarkata, Surabaya, Bandung, Medan, Semarang, Solo.
  • In 2006 Tao Brothers started a factory in Maanshan City Bowang Industrial Park in Anhui province of China.
  • In 2008 MF passed the ISO 9001:2008 quality management system standard.
  • in 2011 MF obtained CE certificate.
  • In 2017 MF Machinery has joined the Bowang government project to be part of Meta Fabrication Machine Tool Industrial Chain.
  • At present, the company had expanded to cover an area of 30,000 square meters and has building area up to 18,000 square meters.








Our Services

After-sales service

1. A user guide is included to assist with the machine installation and adjustment and help solve problems which may happen occasionally.

2. The machine will be adjusted one week prior to delivery to make sure it is in perfect condition

3. Technicians are available to guide the installation and adjustment on site. This service would be at buyer's expense, which includes the technician's salary, travelling expense, accommodation, consulting fee etc.

4. All parts are customizable,



Warranty

1. We offer 24-month warranty for the Machine from the shipment date.

2. The warranty does not cover normally worn components

3. We will not be responsible for any damage caused by misuse, improper handling, negligent maintenance, intentional injury or other damages.



FAQ

1.Are you factory or trading company?
We are factory but also do trading.

2.What shall we do if don't know how to operate your machine after bought from you?
We have detailed installation and operation manual. Telephone and online support available 24 hours a day.

3.What are your payment terms?
We support T/T, L/C, Western Union and so on.

Trade Assurance payment method is welcome.
