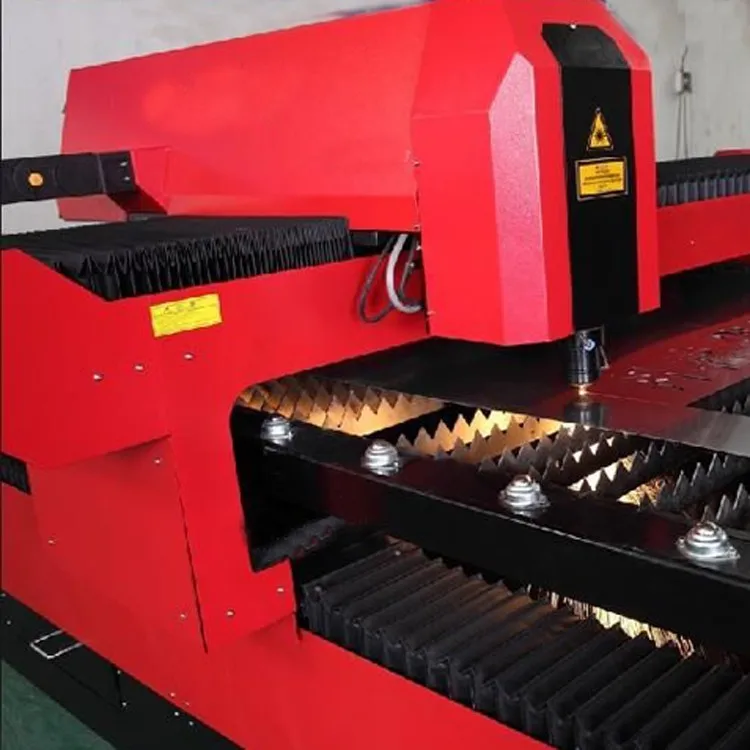

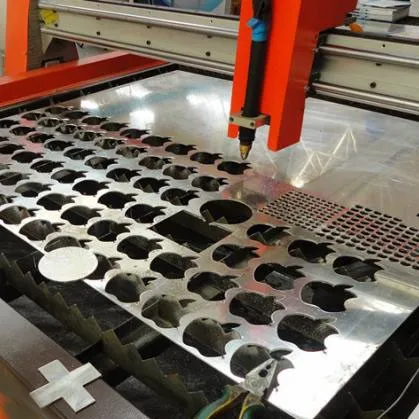

Professional manufacturer hot sale metal cnc laser cutting machine

FOB Reference Price:Get Latest Price
US $50,000-90,000 / Set | 1 Set/Sets (Min. Order)
Supply Ability:
30 Set/Sets per Year
Port:
Shanghai China
Report Suspicious Activity
Overview
Quick Details
Application:
Laser Cutting
Condition:
New
Laser Type:
Fiber Laser
Applicable Material:
Metal, stainless steel carbon steel
Cutting Thickness:
0.2-6mm(500w)/0.2-8mm(750w)(depending on material)
Cutting Area:
2500*1250mm
Cutting Speed:
8m/min(depending on material)
CNC or Not:
Yes
Cooling Mode:
Water Cooling
Control Software:
perfect laser professional laser cutting software
Graphic Format Supported:
AI, DXF, PLT
Place of Origin:
Anhui, China (Mainland)
Brand Name:
M&F
Model Number:
MF-500
Certification:
CE, ISO
After-sales Service Provided:
Engineers available to service machinery overseas
Product name:
Professional manufacturer hot sale metal cnc laser cutting machine
Positioning accuracy of X axis:
±0.05mm/m
Pulse repeated frequence:
0-300Hz
Min line width:
0.12mm(500w)/0.15mm(750w)
Laser wavelength:
1070nm
working power:
380V/50Hz/50A(500w) or 380V/50Hz/60A(750w)
Dimension:
4270mm*2420mm*1750mm
Weight:
3000kg
Keyword:
metal laser cutting
Function:
Cutting Metal Materials
Packaging & Delivery
Packaging Details
standard export package. for Professional manufacturer hot sale metal cnc laser cutting machine
Delivery Time
Shipped in 25 days after payment
Product Description

Professional manufacturer hot sale metal cnc laser cutting machine price

Model
M&F-500
M&F-1000
Laser medium
Diode-pumped continuous yb-doped fiber
Max cutting range
3000mm*1500mm
Max cutting speed
18 m/min
24 m/min
Cooling way
Water cooling
Laser wave length
1070nm
Laser output power
500W
1000W
Laser input power
2KW
5KW
Min line width
≤0.1mm
≤0.125mm
Cutting depth
0.2--5mm
0.2--8mm
Driving way
Imported servo motor
Tranmission way
Y-axis importe gear rack double driver、X-axis imported gear rack
Power requirements
380V/50HZ
Environment temperature
5—35 ℃
Continous working time
24 hours
Weight of the machine
3000 kg
Outline size
4270mm*2420mm*1750mm (length*width*height)

Main Characters:

1. Excellent quality of light beam: smaller focus facula, more fine cutting line, higher working efficiency, better processing quality.
2. Highly cutting speed: the 2 times by co2 laser cutting machine under the same power.
3. Very high stability: adopt world top imported fiber laser source , stable performance, the using life of key parts can reach up to 100 thousands hours.
4. Very high efficiency of photoelectric conversion: of which fiber laser cutting machine is 3 times by co2 laser cutting machine, saving the energy and protecting environment.
5. Very low using cost: power consumption of whole machine is only 20-30% of co2 laser cutting machine under same power.
6. Very low maintenance cost: no working gas for laser source; fiber transmission, no need the reflecting lens; can save large maintenance cost.
7. Convenient product operation and maintenance: fiber transmission, no need to adjust the optical path.
8. Very strong soft optical effects: compact volume and structure, which is easy for soft processing requirement.
9. The machine tool adopts gantry double driving structure, high damping machine tool bed, good rigid, which can suffer very high speed and acceleration.
10. This model adopts imported AC servo system driver and imported transmission system, the moving structure of machine tool adopts imported gear and rack transmission, linear guide track for guiding, ensuring the high speed、high precision and high reliability of equipment.
11. Rack and guide adopt fullly enclosed protective device, which prevents oil free friction movement and dust pollution, enhances using life of transmission parts and ensures the precision of machine tool movement.
12. Professional laser cutting machine, cnc control system, computer operation, can ensure the cutting quality, and more convenient for cutting work.

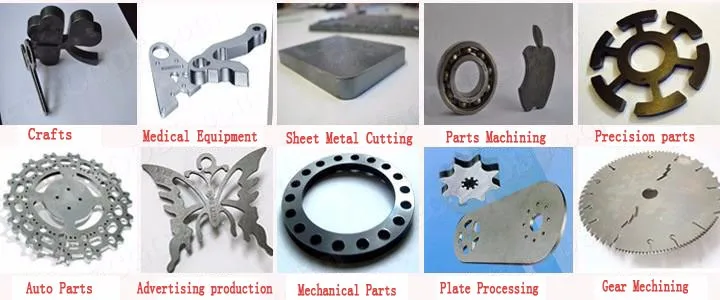

Application field:
Widely used in aviation, aerospace, weapons, ships, automobiles, petrochemicals, medical, mechanical parts, electrical meter parts, saw blades, spring-chip, hardware, knife-volume, sheet metal structures, high-low-voltage electrical cabinet production, production of advertising signs, metal crafts, kitchwear, decorating and other industries.

Packing & Delivery
Plastic film Wrapping, or by customers special requests
Payment Terms
T/T
FOB
30% T/T in advance, paid the balance before shipment
Trade Insurance
CIF
L/C
L/C at sight or L/C 30 days is also accepted
D/P
D/P is available for long-term cooperated customer
Company Intro

Maanshan Mao Feng Heavy Machinery Co.,Ltd

Was established in 2006 with a registered capital of 15 million yuan. It is Located in Maanshan Bowang Industrial Zone in Anhui province of China (Mainland) near the Nanjing Lukou airport. At present, the company covers an area of 30,000 square meters and has building area up to 18,000 square meters. MF passed the ISO 9001:2008 quality management system standard in 2008, and obtained CE certificate in 2011.

Technician Team Photo

MF's team has more than 150 staffs in which 16 people are senior engineers and technicians  . Our team of Service technicians are trained specialists available to answer your call, and to provide machinery installation, repairs, upgrades, maintenance and more. We are dedicated to create greater value for global customers to enhance the international competitiveness of China metal fabrication machine industry.

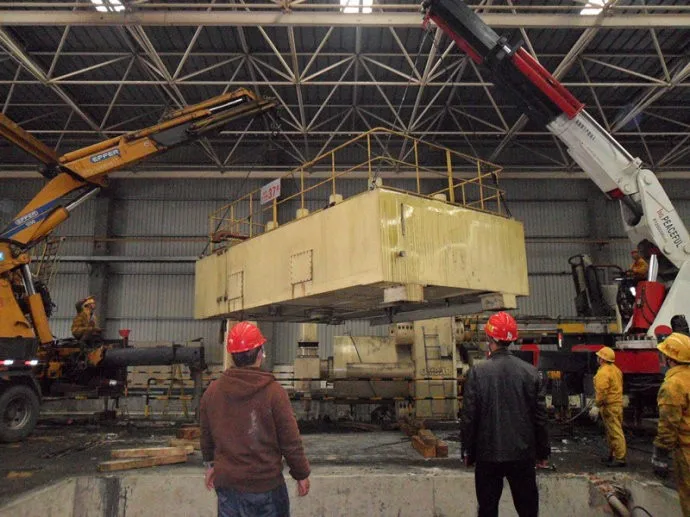

Workshop Photo

We are standing by to help you get more out of your metal. Give MF the opportunity to show what our quality tools & services can do for you and your businesses success today and beyond

Contact Info

Sales Office


Email:sales1(@)mfmachinery.com

Tel: 00865537568155


Mobile: +8615155356692

Ma'anshan Mao Feng Heavy Machine Co.,Ltd.


Address: Bowang Town Industrial Zone, Bowang Area, Maanshan, Anhui, China (Mainland)

Website: http://www.mfmachinery.com
